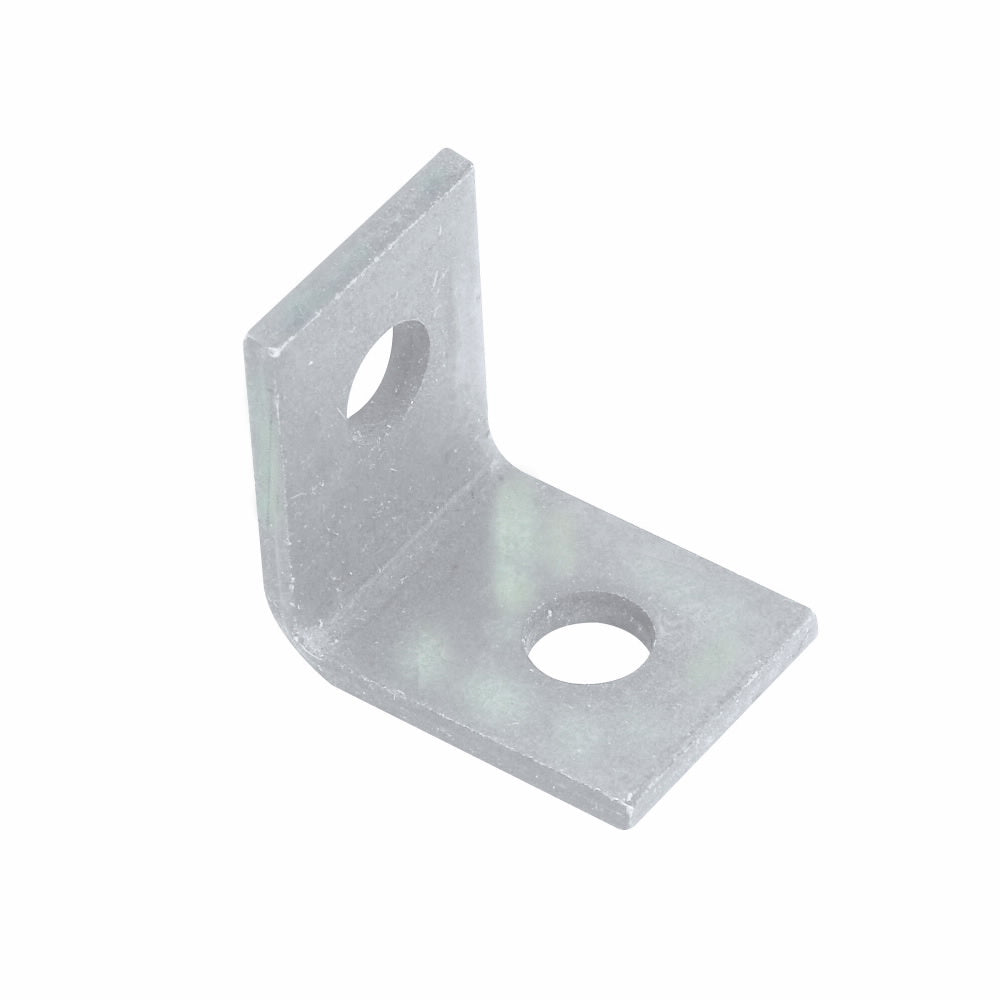

B-LINE ABRASIVES BH7 Angle Bracket

Product Description

The B-LINE ABRASIVES BH7 Angle Bracket is made of steel with a zinc phosphate finish. This bracket is ideal for ceiling mounting and can be used with wire and chain drops from concrete or wood. Additionally, it accommodates 1/4 inch threaded rods. The design includes two holes with a diameter of 0.281 inches and a clearance hole for a 1/4 inch bolt. It supports a static load of up to 160 pounds while handling an eight AWG wire range and a flange thickness of 9/32 inches.

• Constructed from steel with a zinc phosphate finish.
• Features two holes with a diameter of 0.281 inches.
• Supports a static load of 160 lb.

Product Highlights

This angle bracket is suitable for various mounting needs, making it reliable for electrical and construction applications.

Product Information

Standard Information

• Brand: B-LINE ABRASIVES
• Type: Angle Bracket

Technical Specifications

• MPN: BH7
• Material: Steel
• Finish: Phosphate
• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Weight: 0.045 lb
• Static Load: 160 lb
• Wire Range: 8 AWG
• Flange Thickness: 9/32 inch
• Hole Diameter: 0.281 inch
• Standards: UL (Canada and US)
• Compliance: ARRA Compliant, Buy American Act Compliant, RoHS Compliant
• Listing: cULus Listed
