B-LINE ABRASIVES BG-24-C2 Conduit To Beam Fastener Guide-Rite 1-1/2

Product Description

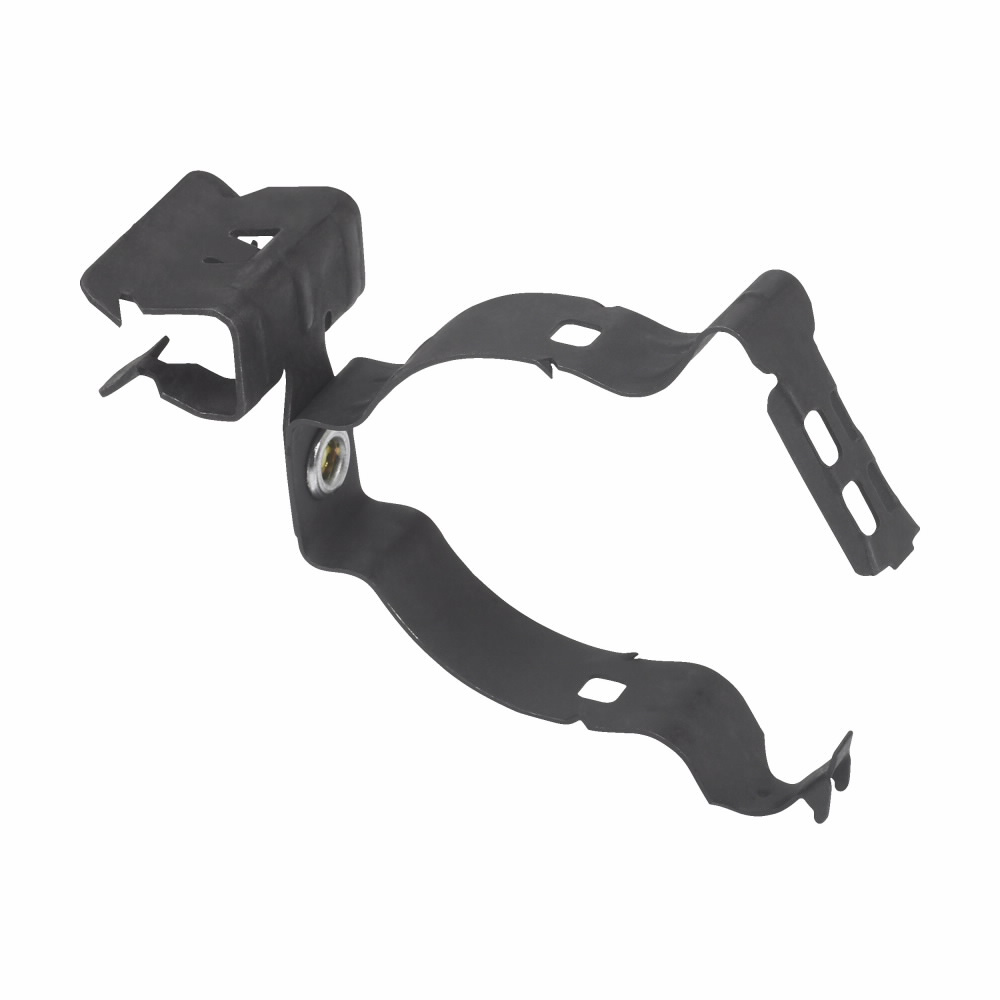

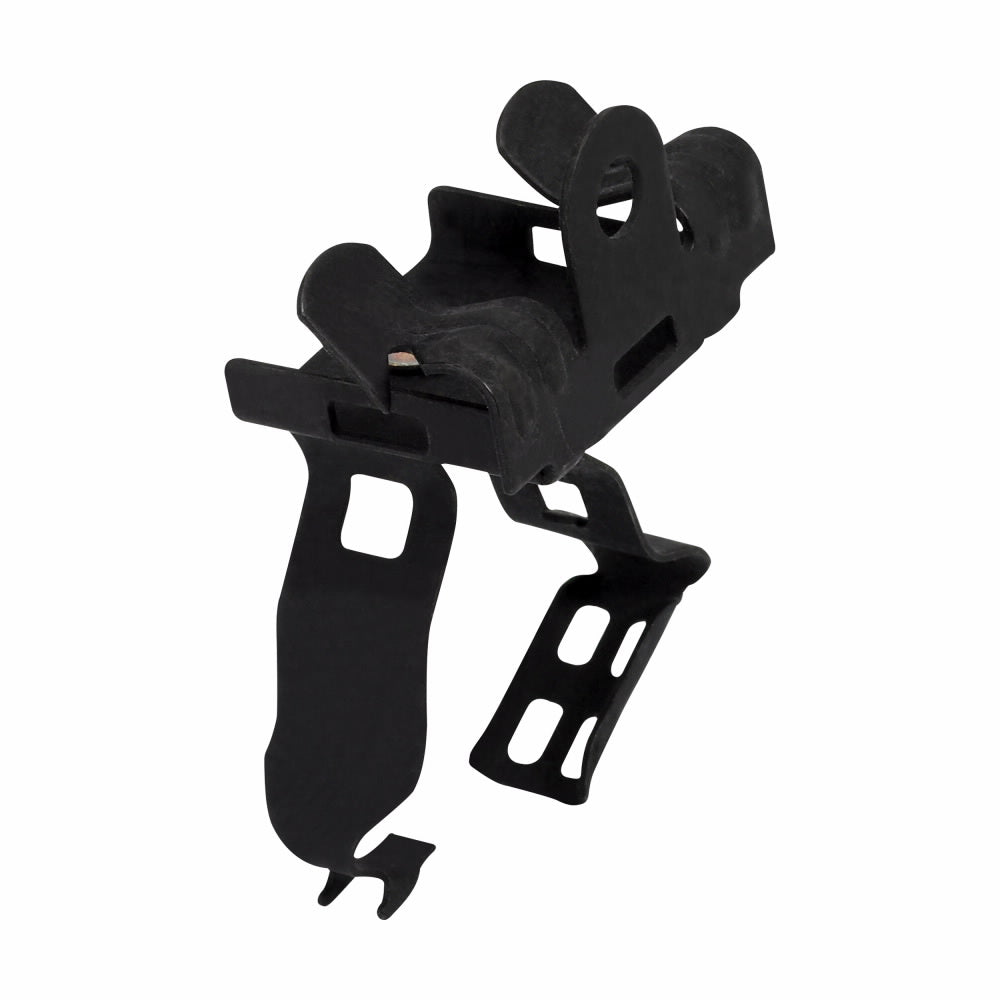

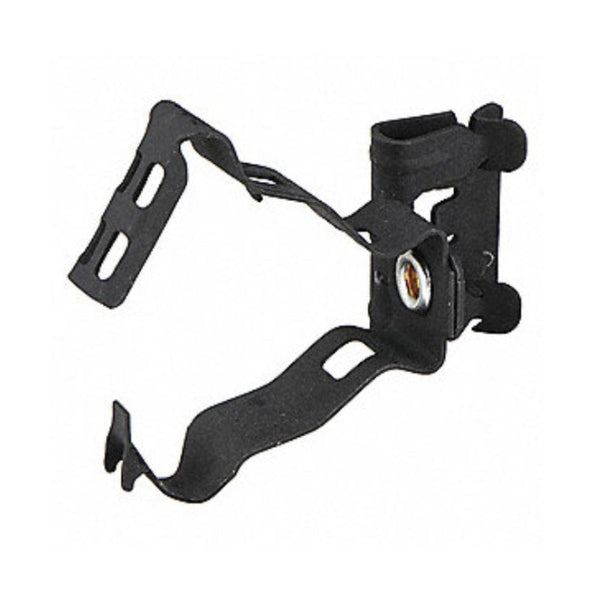

The B-Line BG-24-C2 is a conduit to beam fastener designed for supporting conduit and electrical boxes. It is made from ASTM A684, AISI 1055 spheroidized annealed cold-rolled high carbon steel for durability and reliability in various applications.

• Constructed from ASTM A684, AISI 1055 steel
• Supports 1-1/2 inch conduit size
• Features bottom mounting design

Product Highlights

This fastener ensures compliance with safety standards as it is UL/CUL listed. It is suitable for quick installation with a bottom mounting design ideal for many applications.

Product Information

Standard Information

• Material: ASTM A684, AISI 1055 Spheroidized Annealed Cold Rolled High Carbon Steel
• Mounting: Bottom Mounting

Technical Specifications

• Conduit Size: 1-1/2 inch
• Load Capacity: 25 lbs
• Beam/Flange Size: 1/2 inch
• Weight: 0.13 lb
• Dimensions: Length 1 inch, Height 1 inch, Width 1 inch
