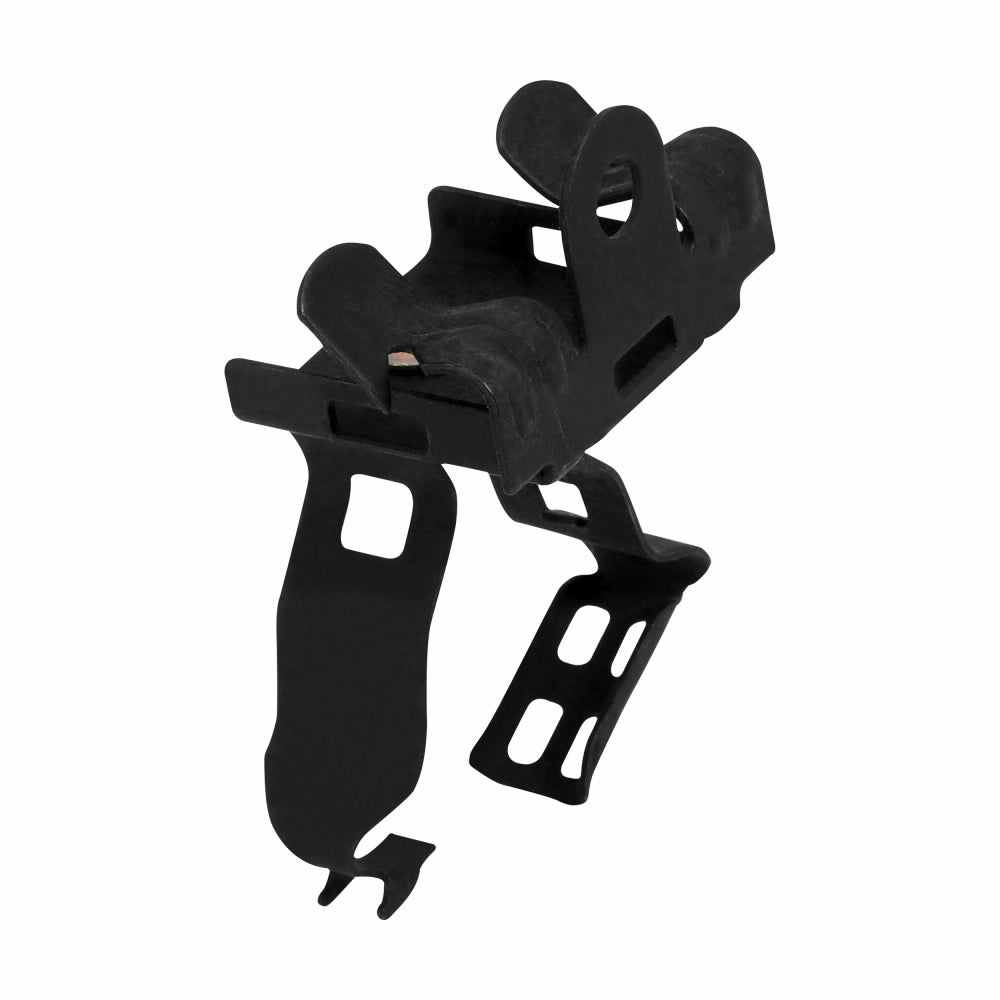

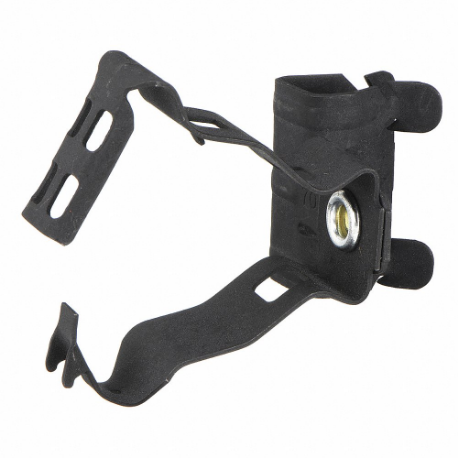

B-LINE ABRASIVES BG-16-U-2-4 Conduit to Beam Fastener

Product Description

The B-LINE ABRASIVES BG-16-U-2-4 conduit to beam fastener supports conduit structures effectively. This product features hammer-on installation for ease of use and enables 360-degree rotation for versatile positioning. Constructed from high carbon steel, it is suitable for one-inch conduit and can accommodate flange thickness between one-eighth and one-quarter inches.

• Hammer-on installation for convenience.
• Allows for 360-degree rotation.
• Constructed from high carbon steel for durability.

Product Highlights

This fastener is designed for bottom mounting, making it ideal for various applications such as commercial and institutional buildings.

Product Information

Standard Information

• Brand: B-LINE ABRASIVES
• MPN: BG-16-U-2-4

Technical Specifications

• Conduit Size: 1 inch
• Flange Thickness: 1/8 to 1/4 inch
• Load Capacity: 75 lb
• Material: High Carbon Steel
• Mounting Type: Bottom
• Finish: Phosphate
• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Standards: UL (Canada and US)
• Application: Commercial / Institutional Buildings
• Sub Brand: B-Line series
• Suitable For Use With: Conduit
• Type: Conduit to Beam Fastener
• Mounting Orientation: Horizontal
• Mounting Style: Flange
