Product Description

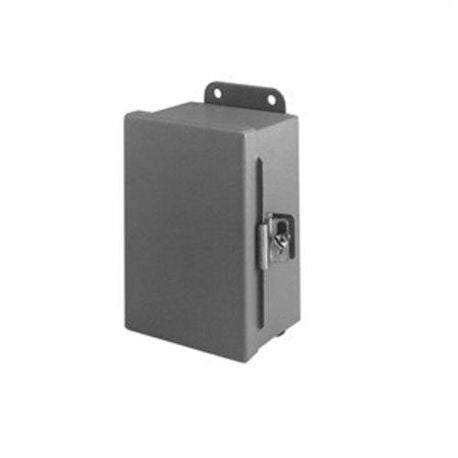

B-Line 664-12CHC is a type 12 JIC panel enclosure designed for industrial applications. It measures six inches in height, six inches in width, and four inches in depth. This enclosure features a hinged cover and is constructed from carbon steel.
- Enclosure and cover are made from sixteen gauge steel.
- Continuous hinge design with smooth welded seams.
- Seamless poured-in-place gasket for enhanced protection.
Product Highlights
This enclosure is ideal for housing electrical controls and instruments. It protects against dust, dirt, and moisture, making it suitable for various industrial environments.
Product Information
Standard Information
-
Manufacturer: B-Line
-
NEMA Rating: 12
Technical Specifications
-
Size: six inches width x four inches depth x six inches height
-
Material: carbon steel
-
Mounting Type: external feet, wall
-
UPC: 782051750409
-
GTIN: 00782051750409
-
Special Features: continuous piano hinge, easy to operate screw clamps
-
Application: electrical control and instruments
