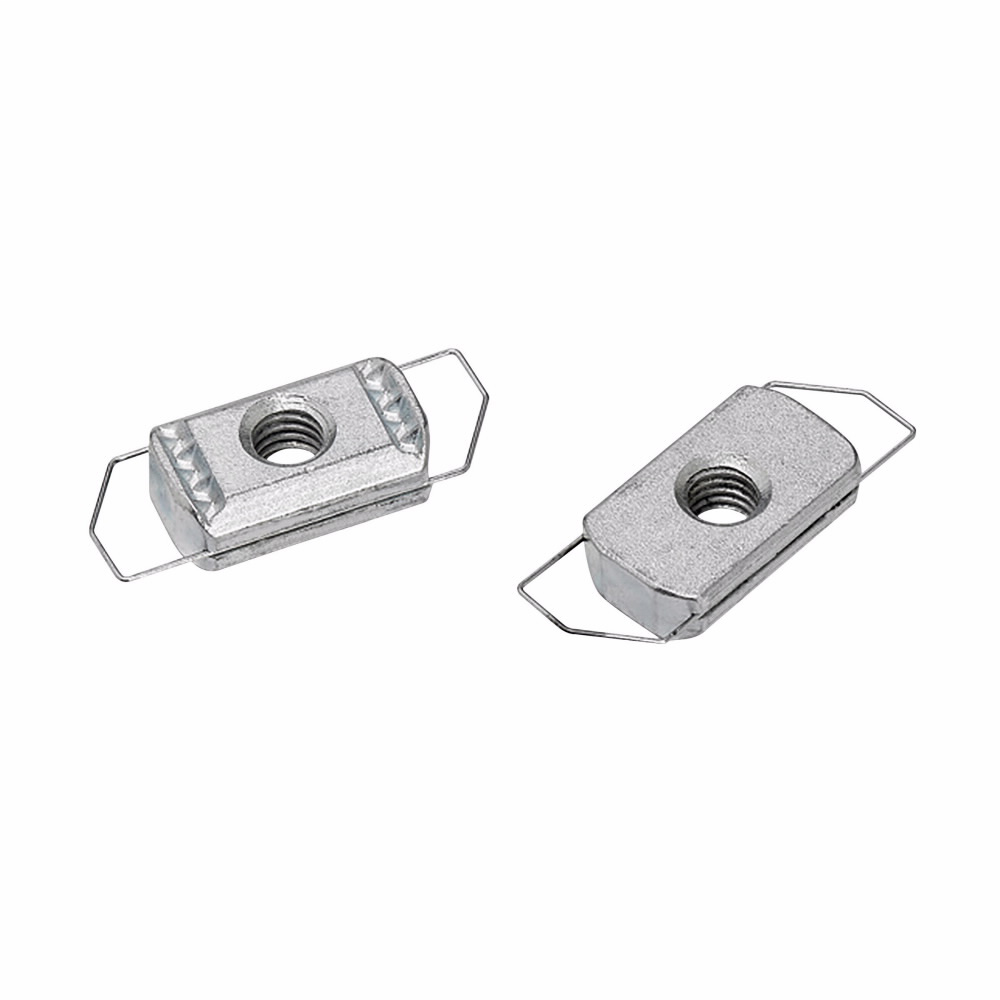

B-Line 4DWN228ZN 3/8 Inch Zinc Wire Wing Channel Nut Assembly

Product Description

The B-Line brand 4DWN228ZN is a wire wing channel nut assembly made from steel and designed for versatility in installation. The product features a dove-tail combination nut washer system that allows for secure connections in 4Dimension strut channels and traditional strut setups.

• Pull-out strength of nine hundred eight pounds.
• Slip strength of eight hundred pounds.
• Thread size of three eighths by sixteen inches.

Product Highlights

This assembly is suitable for various applications, including industrial facilities, datacenters, and commercial buildings due to its robust design.

Product Information

Standard Information

• Catalog Number: 4DWN228ZN
• Brand: B-Line

Technical Specifications

• GTIN: 00799038583363
• Product UPC: 799038583363
• Material: Steel
• Finish: Zinc Plated
• Dimensions: One point nine nine two inches long by zero point seven five inches wide by zero point three five inches high
• Application: Strut fittings across various sectors, including utility and industrial applications
• Sub Brand: B-Line series
