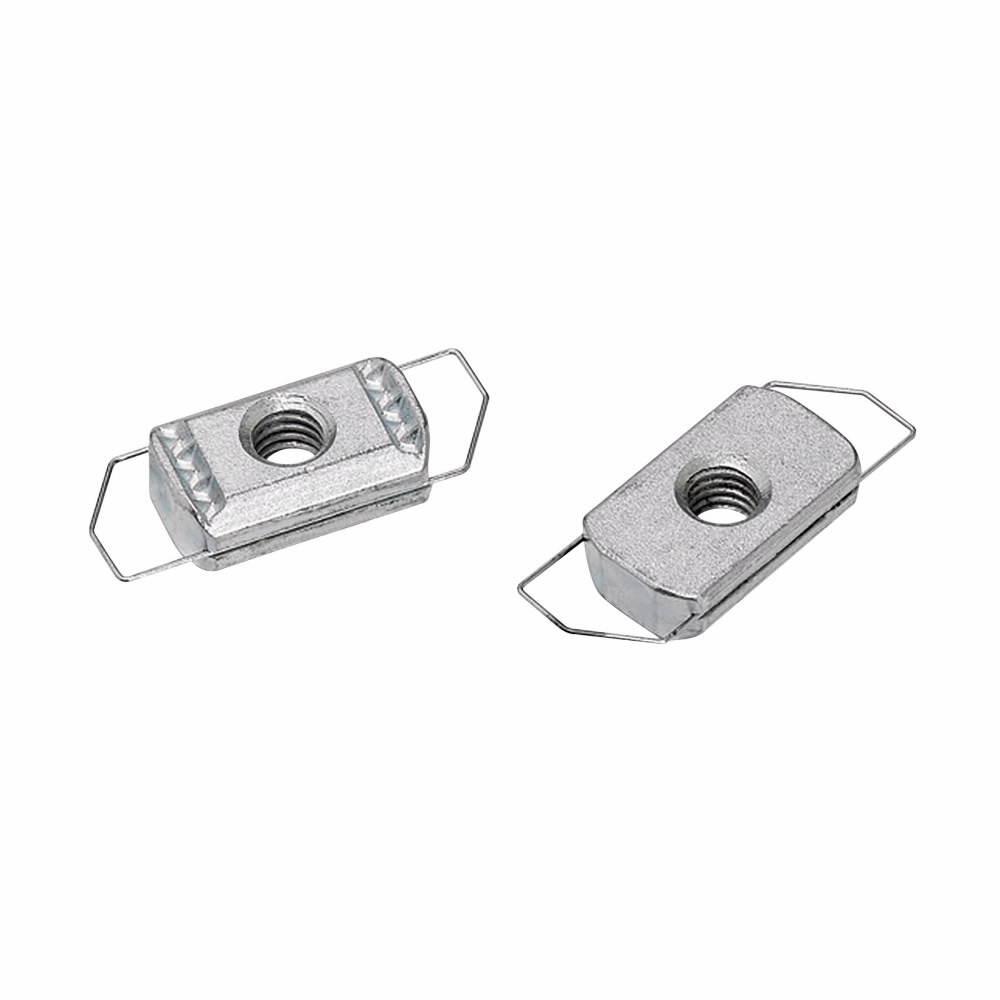

B-Line 4DWN225ZN Wire Wing Channel Nut 1/2-13 Thread

Product Description

The B-Line brand presents the model 4DWN225ZN, a wire wing channel nut designed for use in various strut systems. This nut is made from durable steel and features a zinc-plated finish for enhanced corrosion resistance. The design allows it to fit multiple sides of the 4Dimension strut channel. It can also be utilized in traditional strut applications by bending the wire down.

• 1/2-13 thread size
• 850 lbs pull-out strength
• 800 lbs slip strength

Product Highlights

This channel nut provides strength and versatility for various building applications, making it suitable for both commercial and institutional structures.

Product Information

Standard Information

• Manufacturer: B-Line Systems
• Brand: B-Line

Technical Specifications

• Catalog Number: 4DWN225ZN
• Type: Dove-tail Combo Nut Washer
• Material: Steel
• Finish: Zinc Plated
• Dimensions: 1.992 inches x 0.75 inches x 0.35 inches
• Weight: 0.07 lb
• Thread Size: 1/2-13
• Country of Origin: Taiwan, Province Of China
