B&K 520-165 90 Deg Reducing Pipe Elbow 150 lb 1-1/4 x 1 in

Product Description

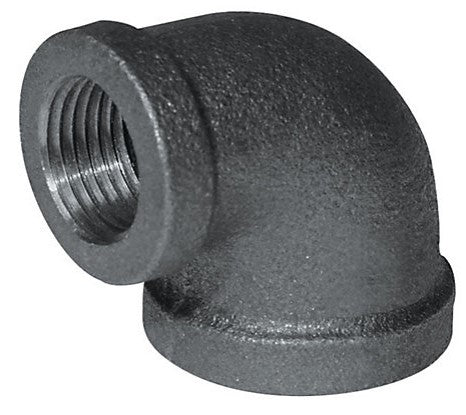

The B&K 520-165 90 degree reducing pipe elbow allows fluid to change direction in piping systems. It is made from malleable iron with a black oxide finish for durability. This fitting has a nominal size of one and one-quarter by one inch with NPT ends, rated for 150 pounds.

• Constructed from malleable iron
• Rated for 150 lb pressure class
• Ideal for oil and gas fluid applications

Product Highlights

This 90 degree elbow fitting is suitable for various plumbing applications. Its black oxide finish enhances corrosion resistance, making it reliable for use in many environments.

Product Information

Standard Information

• Brand: B&K
• UPC: 032888361966

Technical Specifications

• Application: Oil and Gas Fluid Applications
• End Style: NPT
• Finish: Black Oxide
• Fitting/Connector Type: 90 deg Elbow
• Material: Malleable Iron
• Mfg Standards/Approvals: ANSI/ASME B1.20.1, ASME B16.3, ASTM A153
• Nominal Size: 1-1/4 x 1 in
• Package Weight: 0.8 lb
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Series: 520
• Temperature Rating: -20 to 150 deg F
