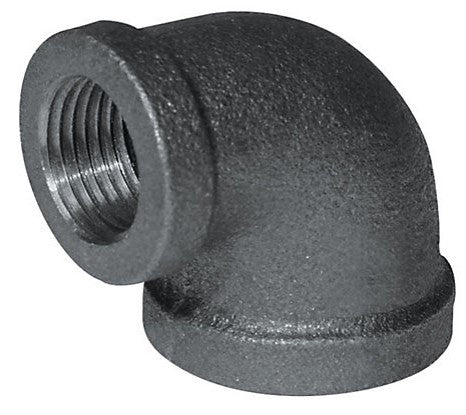

B&K 520-144 90 Deg Reducing Pipe Elbow, 1 x 1/2 In, NPT, 150 lb

Product Description

B&K 520-144 is a 90 degree reducing pipe elbow designed for oil and gas fluid applications. This fitting features a nominal size of one inch by one-half inch and is constructed from malleable iron with a black oxide finish. The NPT end style ensures a secure connection in various plumbing configurations.

• Constructed from malleable iron
• Rated for pressures up to 300 psi
• Meets ANSI/ASME B1.20.1 and ASTM A153 standards

Product Highlights

Ideal for connecting pipes at an angle, this elbow fitting is suitable for various industrial and plumbing projects.

Product Information

Standard Information

• Application: Oil and Gas Fluid Applications
• End Style: NPT

Technical Specifications

• Finish: Black Oxide
• Fitting/Connector Type: 90 Deg Elbow
• Material: Malleable Iron
• Mfg Standards/Approvals: ANSI/ASME B1.20.1, ASME B16.3, ASTM A153
• Nominal Size: 1 x 1/2 In
• Package Weight: 0.477 lb
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Series: 520
• Temperature Rating: -20 to 150 Deg F
