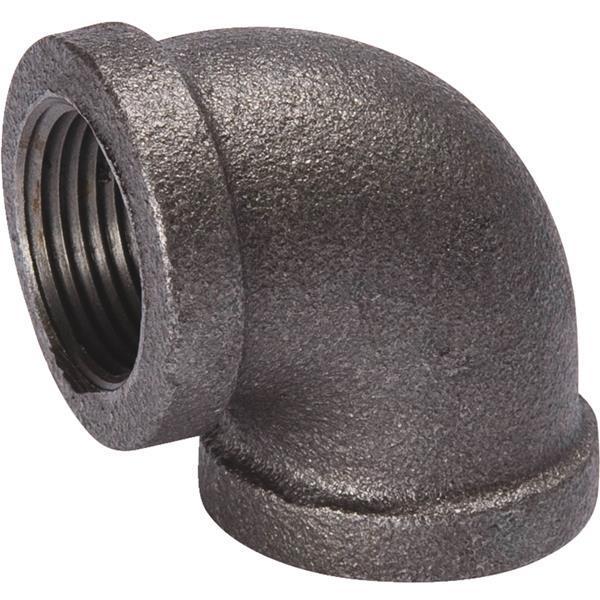

B&K 520-005 90 deg Pipe Elbow, 1 in NPT, 150 lb, Malleable Iron

Product Description

The B&K 520-005 is a 90-degree pipe elbow made of malleable iron, designed for various piping applications. This fitting has a nominal size of one inch and features NPT (National Pipe Tapered) ends. It is built to handle a pressure class of 150 lb and a temperature rating from negative twenty to one hundred fifty degrees Fahrenheit. This elbow is suitable for oil and gas fluid applications.

• Material: Malleable Iron
• Finish: Black Oxide
• Pressure Rating: 300 psi

Product Highlights

This product meets several industry standards including ANSI/ASME B1.20.1 and ASTM A153, ensuring reliability and safety in installations.

Product Information

Standard Information

• Nominal Size: 1 inch
• End Style: NPT

Technical Specifications

• Fitting/Connector Type: 90 deg Elbow
• Material Specification: ASTM A197
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Temperature Rating: -20 to 150 deg F
• Series: 520
• Manufacturing Standards: ASME B16.3, B16.14, B16.39
