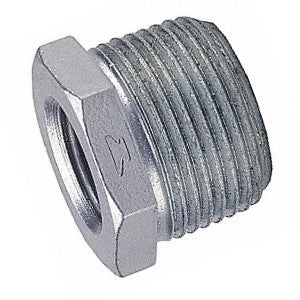

B&K 511-931 Hex Head Pipe Bushing, 1/2 x 1/4 in, MNPT x FNPT, 150 lb, Malleable Iron, Galvanized

Product Description

The B&K 511-931 Hex Head Pipe Bushing is made from malleable iron and features a galvanized finish. It has a nominal size of one-half inch by one-quarter inch, with MNPT and FNPT connections. This product is suitable for applications requiring a pressure class of 150 lb and can withstand a pressure rating of up to 300 psi. It is ideal for both water and gas fluid applications.

• Constructed from malleable iron
• Suitable for high-pressure applications
• Available in various sizes from one-eighth inch to six inches

Product Highlights

This bushing offers strong construction for lasting performance in demanding environments. Its design allows for easy installation in plumbing systems.

Product Information

Standard Information

• Brand: B&K
• Part Number: 511-931

Technical Specifications

• Material: Malleable Iron
• Finish: Galvanized
• End Style: MNPT x FNPT
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Nominal Size: 1/2 x 1/4 in
• Temperature Rating: -20 to 150 deg F
• Manufacturing Standards/Approvals: ASME B1.20.1/B16.14, ANSI B1.20.1, ASTM A153/197
