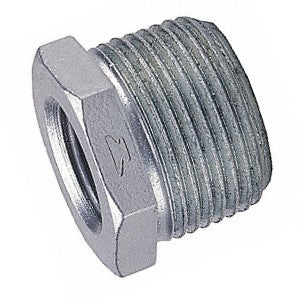

B&K 511-921 Hex Head Pipe Bushing, 3/8 x 1/4 in, NPT, 150 lb, Malleable Iron, Galvanized

Product Description

The B&K 511-921 Hex Head Pipe Bushing is made from malleable iron and features a galvanized finish. It is designed for use in water, air, and steam installations. This pipe fitting has a nominal size of three-eighths by one-quarter inches with a NPT end style. It is rated for a 150-pound pressure class and can withstand a pressure rating of up to three hundred psi. The bushing supports an operating temperature range from negative twenty to one hundred fifty degrees Fahrenheit.

• Galvanized finish for durable installation
• Designed for water, air, and steam applications
• Meets ANSI/ASME and ASTM standards

Product Highlights

The B&K 511-921 is suitable for various plumbing tasks and complies with California lead plumbing laws.

Product Information

Standard Information

• Brand: B&K
• UPC: 032888369818

Technical Specifications

• Application: For Water, Air and Steam Installations
• End Style: NPT
• Finish: Galvanized
• Fitting/Connector Type: Bushing
• Material: Malleable Iron
• Mfg Standards/Approvals: ANSI/ASME B1.20.1, ASME B16.3/B16.14, ASTM A153
• Nominal Size: 3/8 x 1/4 in
• Package Weight: 0.038 lb
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Series: 511
• Temperature Rating: -20 To 150 deg F
• Type: Hex Head
