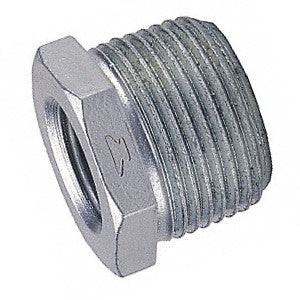

B&K 511-910 Hex Head Pipe Bushing 1/4 x 1/8 in NPT 150 lb

Product Description

B&K 511-910 is a hex head pipe bushing designed for water, air, and steam applications. It features a nominal size of one-quarter inch by one-eighth inch NPT and a pressure rating of three hundred psi. Made from malleable iron and galvanized for enhanced durability, this product meets the necessary manufacturing standards.

• Galvanized finish for various installations
• Compatible with ANSI/ASME standards
• Rated for high pressure and moderate temperature

Product Highlights

This bushing is essential for plumbing projects requiring reliable connections.

Product Information

Standard Information

• Brand: B&K
• Part Number: 511-910

Technical Specifications

• Application: For Water, Air and Steam Installations
• End Style: NPT
• Finish: Galvanized
• Fitting/Connector Type: Bushing
• Material: Malleable Iron
• Mfg Standards/Approvals: ANSI/ASME B1.20.1, ASME B16.3/B16.14, ASTM A153
• Nominal Size: 1/4 x 1/8 in
• Package Weight: 0.022 lb
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Series: 511
• Temperature Rating: -20 To 150 deg F
• Type: Hex Head
