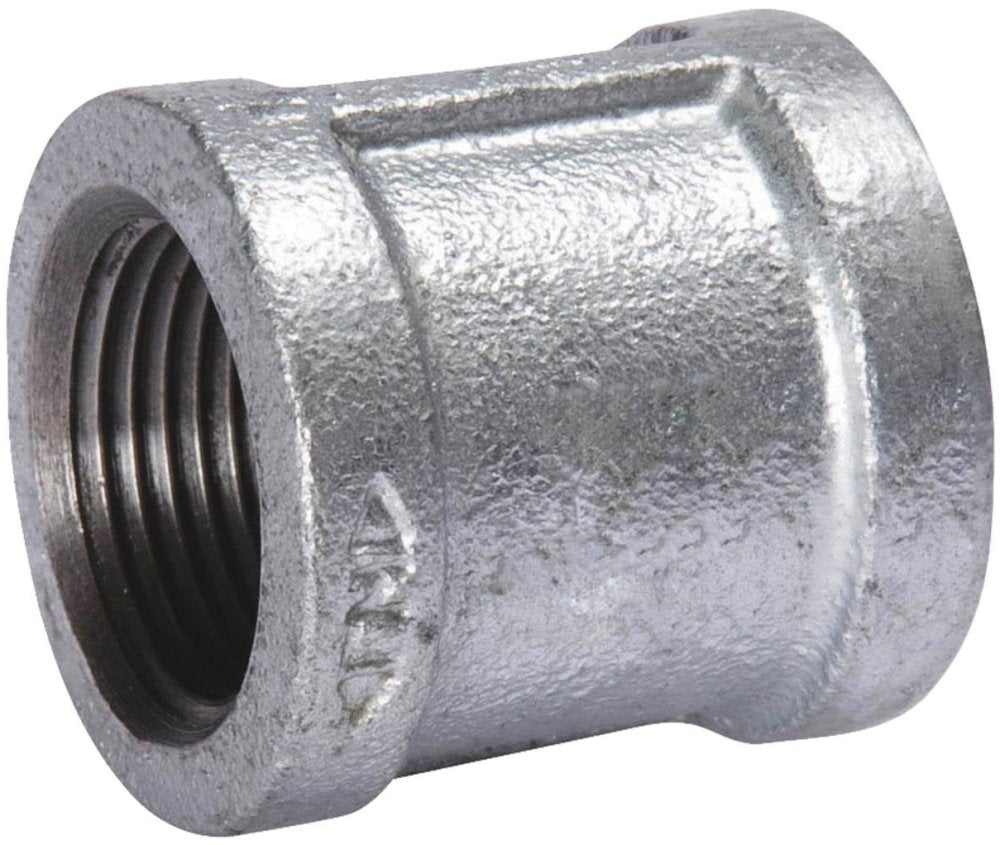

B&K 511-207 Pipe Coupling 1-1/2 in NPT 150 lb Malleable Iron Galvanized

Product Description

The B&K 511-207 Pipe Coupling is designed for use in various plumbing installations. This coupling is fabricated from malleable iron and is hot-dipped galvanized for corrosion resistance. It features an NPT end style and is suitable for water, air, and steam systems. This coupling is rated for a pressure class of 150 pounds and can handle up to 300 psi.

• Application for water, air, and steam installations.
• Manufactured to ANSI and ASTM standards.
• Compatible with galvanized systems in compliance with California lead plumbing law.

Product Highlights

This coupling provides reliable performance in medium to high-pressure environments, ensuring a tight seal in plumbing applications.

Product Information

Standard Information

• Brand: B&K
• UPC: 032888366664

Technical Specifications

• Application: For Water, Air and Steam Installations
• Dimensions: 2.43 in W
• End Style: NPT
• Finish: Galvanized
• Fitting/Connector Type: Coupling
• Length: 2.15 in
• Material: Malleable Iron
• Mfg Standards/Approvals: ANSI/ASME B1.20.1, ASME B16.3, ASTM A153
• Nominal Size: 1-1/2 in
• Package Weight: 0.866 lb
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Series: 511
• Temperature Rating: -20 to 150 deg F
