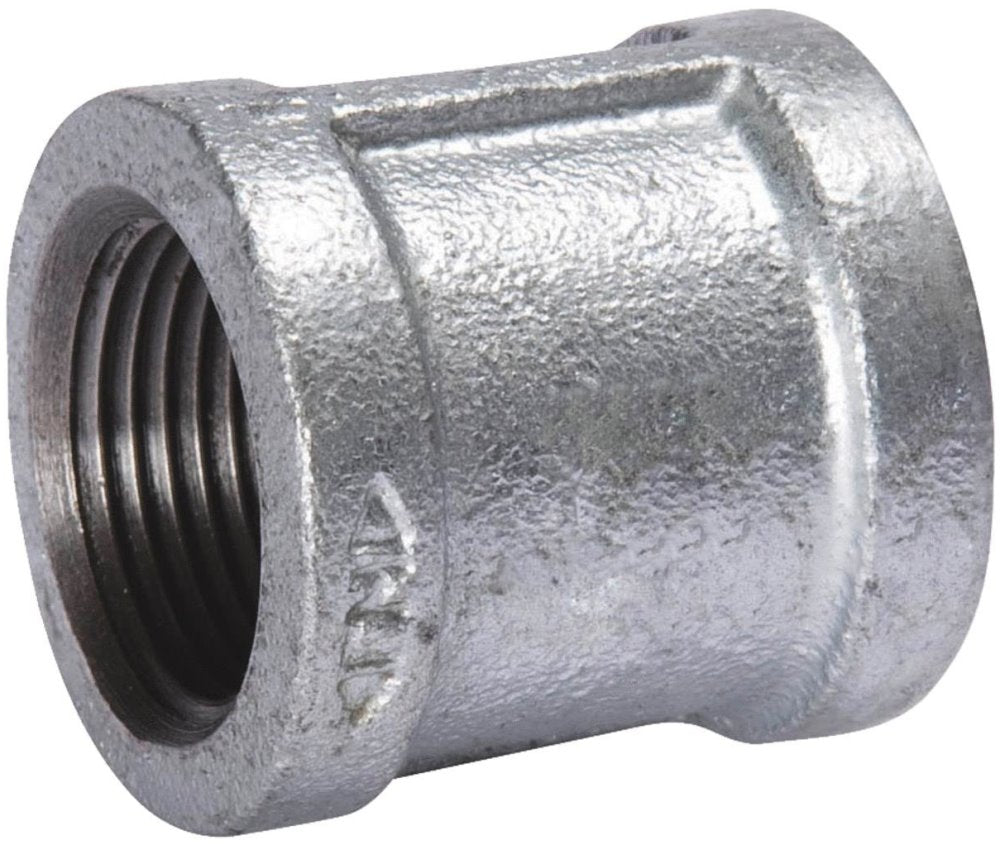

B&K 511-204 Pipe Coupling, 3/4 in NPT 150 lb Malleable Iron Galvanized

Product Description

B&K 511-204 Pipe Coupling is designed for use in various plumbing applications. This coupling is made of malleable iron with a galvanized finish, ensuring durability and resistance to corrosion. It is suitable for water, air, and steam installations. The nominal size of this coupling is three-quarters of an inch with NPT end style, which makes it easy to connect with other piping systems.

• Galvanized finish compliant with California lead plumbing law
• Meets ASTM A-153 standards for hot dip galvanizing
• Rated for a pressure class of 150 lb and a maximum pressure of 300 psi

Product Highlights

The B&K 511-204 coupling is ideal for various applications due to its robust design and material quality.

Product Information

Standard Information

• UPC: 032888366633
• Category: Plumbing > Pipe, Tube & Hose Fittings > Pipe Fittings

Technical Specifications

• Application: For Water, Air and Steam Installations
• End Style: NPT
• Finish: Galvanized
• Fitting/Connector Type: Coupling
• Material: Malleable Iron
• Mfg Standards/Approvals: ANSI/ASME B1.20.1, ASME B16.3, ASTM A153
• Nominal Size: 3/4 in
• Package Weight: 0.271 lb
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Series: 511
• Temperature Rating: -20 To 150 deg F
