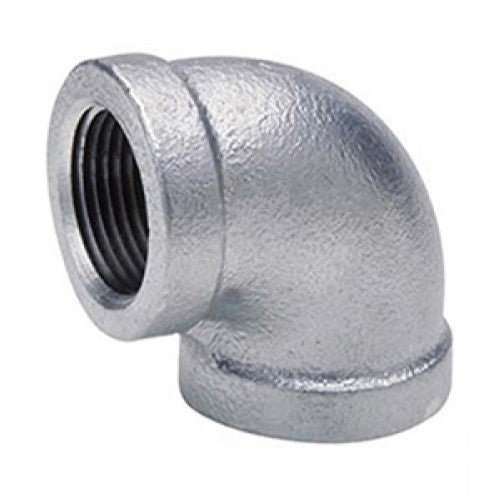

B&K 510-006 90 deg Pipe Elbow, 1-1/4 in, NPT, 150 lb, Malleable Iron, Galvanized

Product Description

The B&K 510-006 is a 90-degree pipe elbow designed for use in plumbing applications involving water, air, and steam installations. This fitting is made from malleable iron and features a galvanized finish to prevent corrosion. It has a nominal size of one and one-quarter inches and uses NPT threading for secure connections.

• Constructed from malleable iron
• Galvanized for enhanced durability
• Designed for 150 lb pressure class

Product Highlights

The B&K 510-006 provides reliable performance in plumbing systems by allowing for tight turns in piping runs.

Product Information

Standard Information

• Brand: B&K
• MPN: 510-006

Technical Specifications

• Application: Water, Air and Steam Installations
• End Style: NPT
• Finish: Galvanized
• Fitting/Connector Type: 90 deg Elbow
• Material: Malleable Iron
• Mfg Standards/Approvals: ANSI/ASME B1.20.1, ASME B16.3, ASTM A153
• Nominal Size: 1-1/4 in
• Package Weight: 0.845 lb
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Series: 510
• Temperature Rating: -20 to 150 deg F
