B&K 510-001 90 deg Pipe Elbow 150 lb (1/4 in) MPN 510-001

Product Description

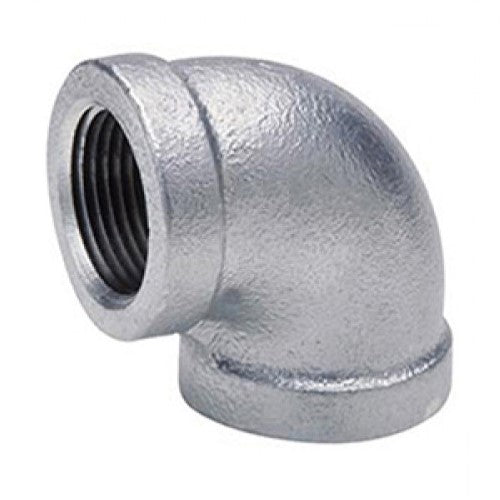

The B&K 510-001 is a 90-degree pipe elbow made from malleable iron and features a galvanized finish. This elbow fitting is designed for water, air, and steam installations. With a nominal size of one-fourth inch and a pressure class rated up to 150 lb, it is suitable for various plumbing applications.

• Meets California lead plumbing law standards.
• Constructed using a hot dip galvanizing process that complies with ASTM A-153.
• Designed with an NPT end style for secure pipe connections.

Product Highlights

This elbow fitting offers durability and reliability in plumbing systems.

Product Information

Standard Information

• Brand: B&K
• Part Number: F0051

Technical Specifications

• Application: Water, Air and Steam Installations
• End Style: NPT
• Finish: Galvanized
• Fitting/Connector Type: 90 deg Elbow
• Material: Malleable Iron
• Mfg Standards/Approvals: ANSI/ASME B1.20.1, ASME B16.3, ASTM A153
• Nominal Size: 1/4 in
• Package Weight: 0.11 lb
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Series: 510
• Temperature Rating: -20 to 150 deg F
