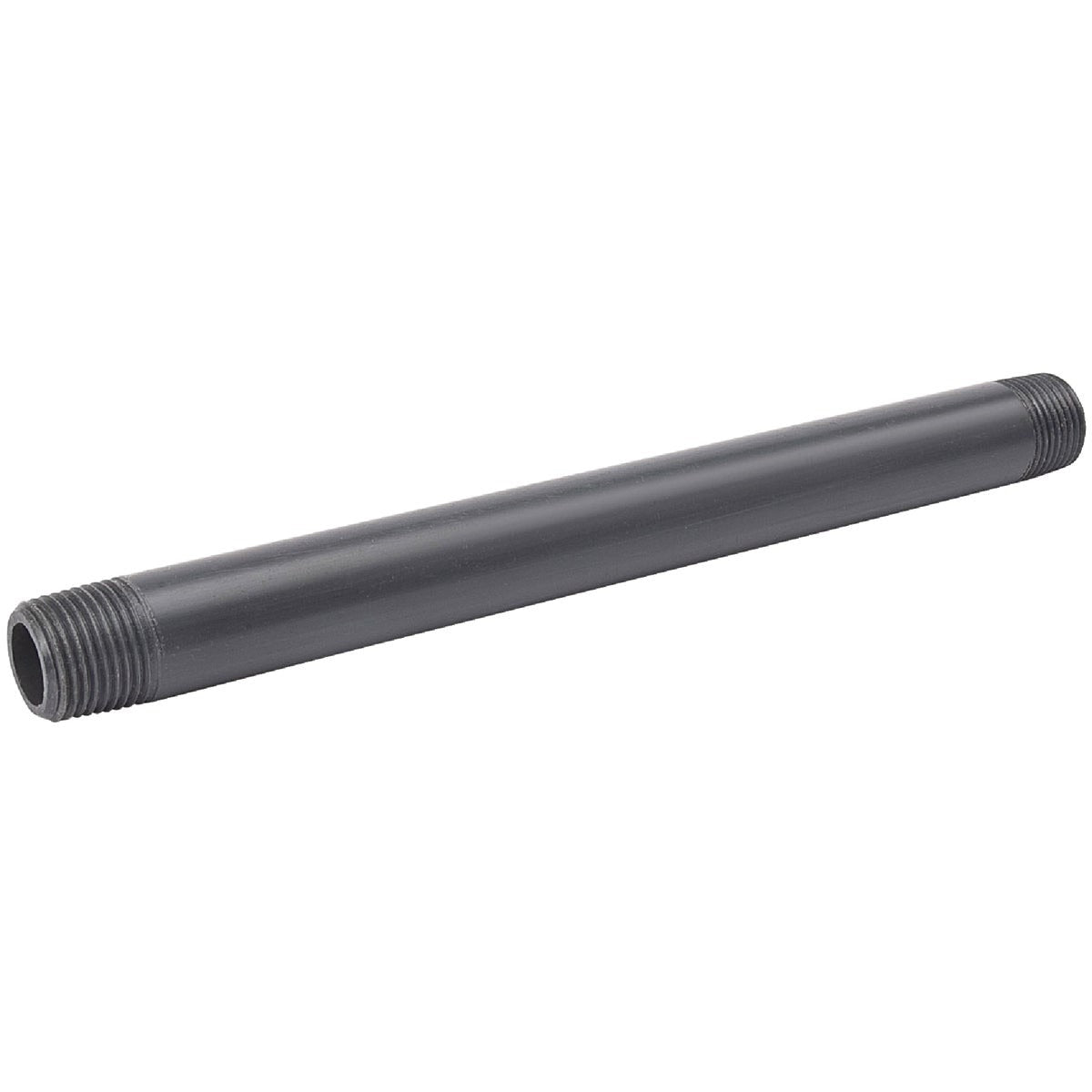

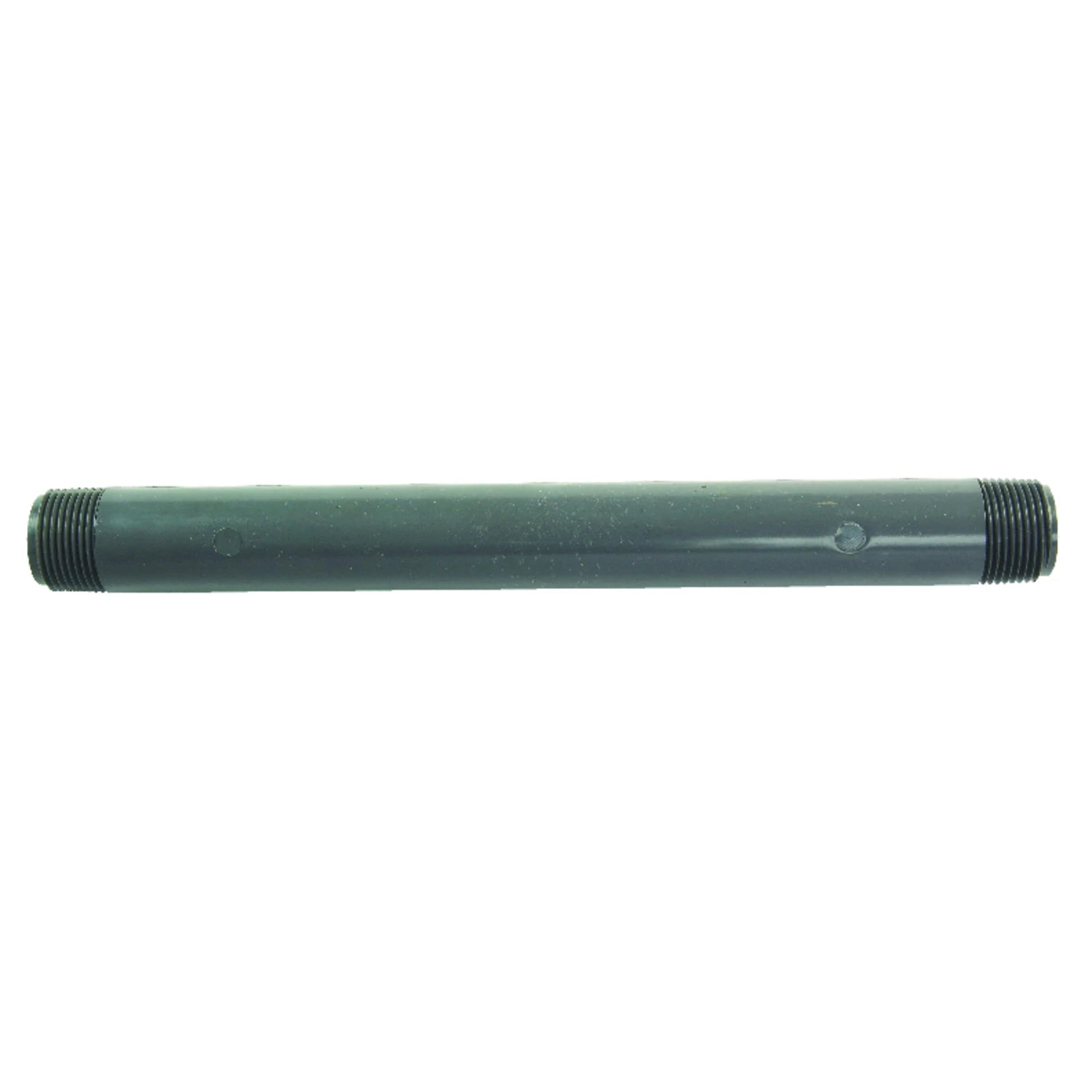

B&K 403-080 1/2 In. x 8 In. Schedule 80 PVC Nipple

Product Description

The B&K 403-080 is a 1/2 In. x 8 In. Schedule 80 PVC Nipple. Constructed from durable, industry-approved PVC material, this fitting is suitable for various PVC applications. It features smooth interior walls, resulting in less pressure loss and higher volume than conventional metal fittings. Resistant to mild acids, solvents, and oils.

• Made in the USA
• Can be used in both Schedule 40 and Schedule 80 piping systems
• Resistant to mild acids, solvents and oils

Product Highlights

Durable PVC construction ensures longevity, while smooth interior walls optimize flow. Suitable for pressure applications.

Product Information

Standard Information

• Brand: B&K
• Manufacturer Part Number: 403-080
• Country of Origin: USA

Technical Specifications

• MPN: 403-080
• Manufacturer: Mueller B&K
• Brand: B&K
• UOM: Each
• Country: US
• Inlet Diameter (in): 1/2
• Inlet Connection: MIP
• Outlet Diameter (in): 1/2
• Outlet Connection: MIP
• Length: 8-in
• Product Length (in): 8.00
• Product Height (in): 0.88
• Product Width (in): 0.88
• Working Pressure (PSI): 40
• Maximum Pressure (PSI): 425
• Minimum Temperature (0F): 32
• Working Temperature (0F): 73
• Maximum Temperature (0F): 140
• Product Type: Nipple
• Product Material: PVC
• Material: PVC
• Application: Pressure Applications
• Number in Package: 1 pk
• ANSI Certified: Yes
• Average Lead Content: Lead-Free
• End 1 Diameter: 1/2"
• End 1 Type: MPT
• Hazardous Material: No
• NSF Listed: Yes
• Schedule Type Number: Schedule 80
• Width: 0.75
• Pipe Fittings Product Type: Nipple
• End 2 Diameter: 1/2"
• End 2 Type: MIP
• Minimum Temperature: 32 deg. F
• Working Pressure: 40 psi
• Working Temperature: 73 deg. F
• Item Height: 2 in
• Item Diameter: 1 1/2 in
• Item Weight: 0.12
