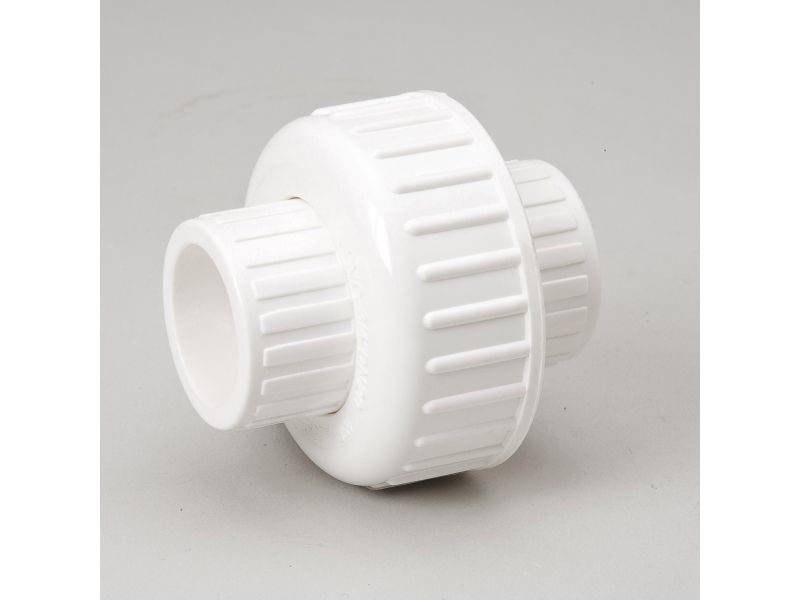

B & K 164-636HC Schedule 40 PVC 1-1/4-in SOLV Union

Product Description

The B & K 164-636HC Schedule 40 PVC union is designed for connecting pipes in plumbing systems. This product allows for quick disconnections and re-connections, ensuring easy maintenance and assembly. Made from Schedule 40 PVC material, it is suitable for cold water pressure systems and compatible with both Schedule 40 and Schedule 80 pipes.

• Constructed with a rubber o-ring for a secure, water-tight seal
• Rated for a pressure of 150 PSI at seventy-three degrees Fahrenheit
• NSF approved for use in potable water applications

Product Highlights

This union is designed for efficient disassembly of piping systems when maintenance is needed. The three-section construction makes it straightforward to connect and disconnect.

Product Information

Standard Information

• Product Type: Schedule 40 Unions
• Brand: B & K

Technical Specifications

• Inlet Diameter: 1-1/4 inches
• Outlet Diameter: 1-1/4 inches
• Product Length: 2.87 inches
• Product Height: 3.00 inches
• Product Width: 3.00 inches
• Product Weight: 0.44 lbs
• Working Pressure: 150 PSI
• Working Temperature: 73 degrees Fahrenheit
• Maximum Temperature: 113 degrees Fahrenheit
• Unit of Measure: Each
• Warranty Code: 1-year limited warranty
• Standards: NSF/ANSI 14, NSF/ANSI 372, NSF/ANSI 61
