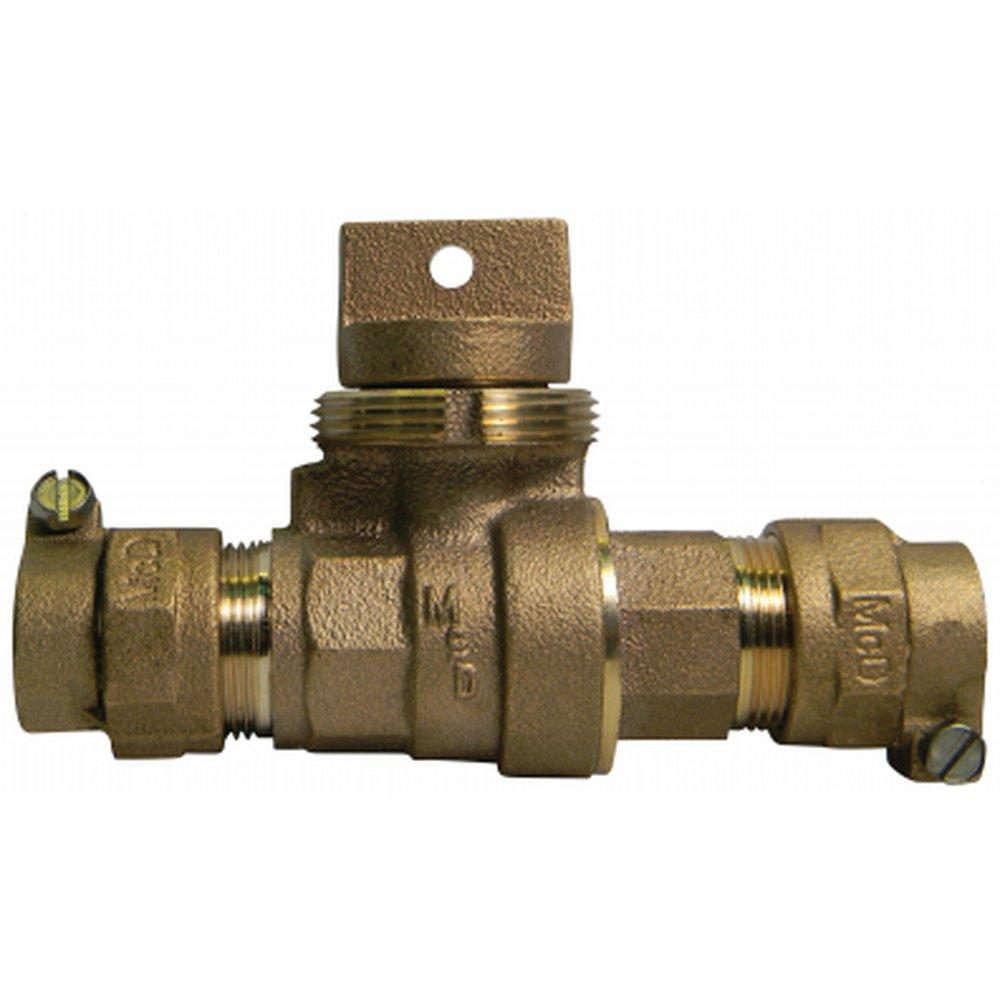

AY McDonald 5142-137 3/4 in. PEP Brass Ball Valve Curb Stop

Product Description

The AY McDonald 5142-137 3/4 in. PEP Brass Ball Valve Curb Stop is designed for efficient water control. This ball curb stop valve is constructed with a PTFE coated brass ball for low turning torque and a bubble-tight water pressure rating of 300 psi. The end piece joint is sealed with an EPDM O-ring and thread locker, and the product meets ANSI/AWWA, NSF, and ASTM standards.

• Constructed with brass for durability
• 300 psi water pressure rating
• Sealed with EPDM O-ring and thread locker

Product Highlights

AY McDonald Ball Curb Stop is designed for optimal water control with a low turning torque and 300 psi pressure rating. This curb stop offers positive shut-off from either direction and includes an EPDM O-ring for sealing.

Product Information

Standard Information

• Brand: AY McDonald
• MPN: 5142-137

Technical Specifications

• Ball Material: Brass
• End Style: -33 PEP Compression
• Nominal Size: 3/4 in
• Pressure Rating: 300 psi
• Series: 76104-33
• Softgoods Material: EPDM
• Top to Inlet Center: 2.7 in
• Trim Material: EPDM Port Seal
