Ay Mcdonald 7610FKIT 2 Coupling FlangexFNPT-NL

Product Description

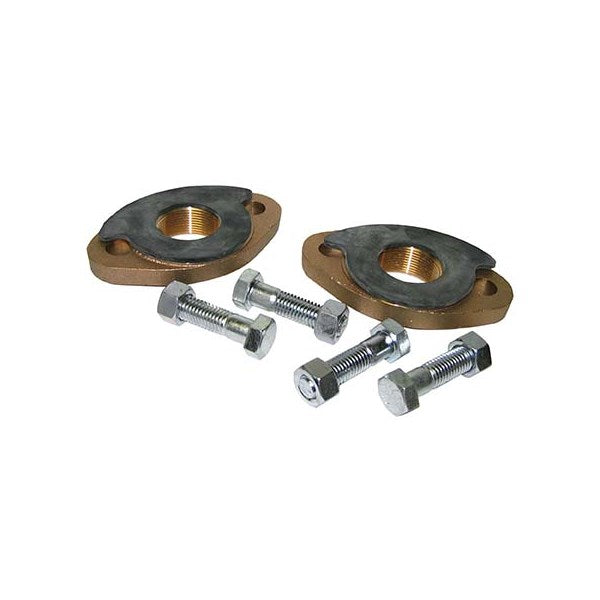

The AY MCDONALD 7610FKIT 2 Coupling is a meter coupling with a flange inlet connection and FNPT outlet connection. It is made of NL brass and designed for water works applications. The kit includes flanges, gaskets, bolts and nuts. It is manufactured in compliance with ANSI/AWWA C800 and certified to NSF/ANSI 61 and NSF/ANSI 372.

• EPDM rubber gaskets are supplied and are standard
• Large wrench area provided for proper installation
• Lead-free

Product Highlights

The AY MCDONALD 7610FKIT coupling ensures secure and compliant connections for potable water systems.

Product Information

Standard Information

• Brand: AY MCDONALD
• Manufacturer Part Number: 7610FKIT

Technical Specifications

• Part Type: Meter Coupling
• Series: 7610FKIT
• Meter Size: 2
• Inlet Connection: Flange
• Outlet Connection: FNPT
• Inlet Connection Size: 2
• Outlet Connection Size: 2
• Insert Stiff Req: NA
• Material: Brass
• Product Line: Water Works
• Product Class: 414
• Commercial Category: Meter Couplings & Accessories
• Commercial Sub Category: Meter Couplings-Oval Flange
• Commercial Style: 2xFNPT
• Type: Meter Flange Kit
• Weight (LB): 6.600
• Nominal Pipe Size (IN): 2
• Application: POTABLE WATER
• Brand: A.Y McDonald
• ASTM: ASTM B-584
• AWWA: AWWA C-800
• Collection: 7610FKIT Series
• End Connection 1: Flanged
• End Connection 2: FNPT
• End Connections: Flanged x FNPT
• Fitting Size 1: 2
• Fitting Size 2: 2
• Fitting Sizes: 2 in
• Fitting Type: Straight
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 6
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Product Type: Flange Kit
• Thickness: 1-1/5 in
• UPC: 053565471945
