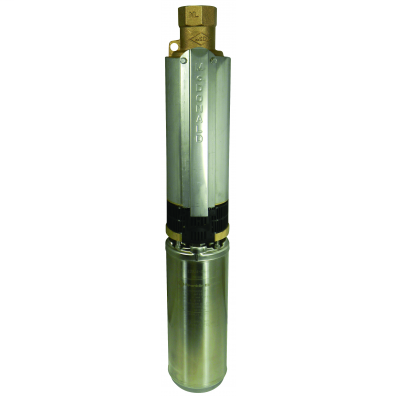

Ay Mcdonald 6650-023 Submersible Bronze Pump 1.5 Hp

Product Description

The AY MCDONALD 6650-023 is a bronze submersible pump rated at 1.5 horsepower and 10 gallons per minute, designed for residential and light commercial water supply applications. Running on 230 volts single-phase power with a 2-wire configuration, this pump is built for reliable underground service in wells and similar submerged environments. The bronze construction provides corrosion resistance in demanding water conditions. Licensed plumbers and well pump contractors are the primary installers for this type of unit.

This submersible pump is suited for residential well water systems where consistent flow and durability are required. The 10 GPM flow rate supports typical household demand, and the 1.5 HP motor provides the head pressure needed for moderate-depth well installations. The 2-wire motor configuration simplifies wiring compared to 3-wire setups, as the starting components are built into the motor itself rather than requiring a separate control box.

Key Features

• 1.5 HP motor rated for continuous submersible service
• 10 GPM flow rate suitable for residential water supply
• 230-volt, 2-wire single-phase operation with built-in starting components
• Bronze construction for corrosion resistance in groundwater environments
• Designed for submerged installation in well casings

Compatibility

Designed as an OEM-style submersible well pump for residential and light commercial water supply systems requiring a 1.5 HP, 10 GPM, 230-volt 2-wire configuration.

Installation Notes

Installation should be performed by a licensed well pump contractor or plumber in accordance with local codes and the pump manufacturer guidelines. Disconnect and lock out all electrical power before handling the pump, drop cable, or any associated wiring. The pump must be fully submerged during operation to prevent motor damage from overheating. Verify that the well casing diameter is compatible with the pump body dimensions before lowering the unit.

Technical Specifications

• Horsepower: 1.5 HP
• Flow Rate: 10 GPM
• Voltage: 230 volts
• Wiring Configuration: 2-wire
• Material: Bronze
• Pump Type: Submersible

Standard Information

• Brand: AY MCDONALD
• Manufacturer Part Number: 6650-023
