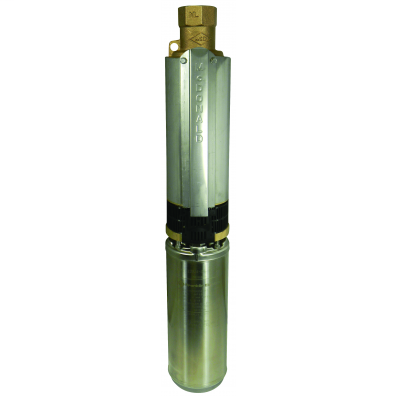

Ay Mcdonald 6650-009 Submersible Bronze Pump 10 Gpm

Product Description

The AY MCDONALD 6650-009 is a bronze submersible pump rated at 1/2 horsepower and 115 volts on a 2-wire configuration. It delivers up to 10 gallons per minute, making it suited for residential water supply, well systems, and similar groundwater applications. The bronze construction offers corrosion resistance in submerged environments. Licensed plumbers and well pump installers handle this type of unit as part of new installations or direct replacements in shallow-well and cistern setups. The 2-wire design simplifies wiring at the pump end, with the starting components housed in a separate above-ground control box.

This submersible pump is typically installed in residential and light commercial water well systems where a compact, reliable pump is needed at moderate flow rates. The 10 GPM output suits single-family residential demand loads. It is also applicable in cistern supply, pressure booster, and similar low-to-mid volume water transfer applications. Always verify static water level and total dynamic head requirements before selecting this pump for a specific installation.

Key Features

• Rated flow rate of 10 gallons per minute for residential water supply applications
• 1/2 HP motor provides reliable performance in submersible well pump service
• 115-volt, 2-wire configuration simplifies pump-end wiring
• Bronze construction resists corrosion in continuous submerged service
• Designed as a direct submersible replacement for standard residential well pump installations

Compatibility

Designed as an OEM-style replacement or new-installation submersible pump for residential water well and cistern systems requiring a 1/2 HP, 115-volt, 2-wire pump at 10 GPM flow capacity.

Installation Notes

Installation should be performed by a licensed plumber or certified well pump contractor in accordance with applicable local plumbing codes and the IPC. Disconnect and lock out all electrical power before handling pump wiring or lowering the unit into the well casing. Ensure the well casing diameter is compatible with the pump body dimensions before installation. Do not run the pump dry, as submersible motors depend on the pumped water for cooling.

Technical Specifications

• Flow Rate: 10 GPM
• Motor Horsepower: 1/2 HP
• Voltage: 115 volts
• Wiring Configuration: 2-wire
• Material: Bronze
• Pump Type: Submersible

Standard Information

• Brand: AY MCDONALD
• Manufacturer Part Number: 6650-009
