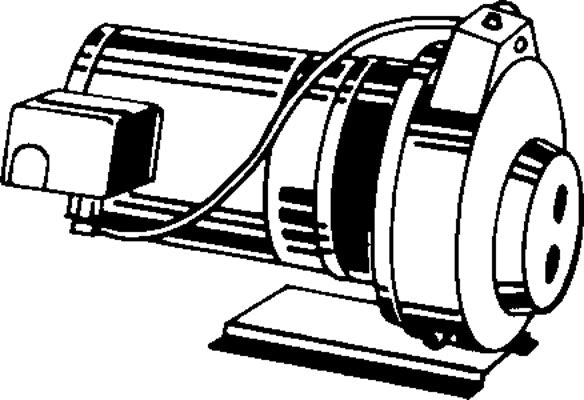

AY McDonald 6165-002 8670 SQ CONV JET PUMP 3/4HP NORYL

Product Description

The A.Y. McDonald 6165-002 is a convertible jet pump designed for a variety of pumping applications. It features a robust construction and efficient operation, making it suitable for residential and light commercial use. With a flow rate of sixty-five gallons per minute and a horsepower of three-quarters, this pump can efficiently move water in various setups.

• Constructed from durable cast iron
• Designed for deep well performance to one hundred twenty feet
• Features a square flange motor

Product Highlights

This model is compatible with installations requiring specific inlet and outlet sizes and offers flexibility in operation with up to fifty psi maximum pressure.

Product Information

Standard Information

• Brand: A Y McDonald MFG CO
• UPC: 53565236254

Technical Specifications

• Series: 8600
• Flow Rate: 65 gpm
• Horsepower: 3/4 hp
• Voltage Rating: 230 VAC
• Amperage Rating: 7.6 A
• Dimensions: 15.9 in L x 10-1/2 in W x 10 in H
• Inlet Size: 1-1/4 in
• Outlet Size: 3/4 in
• Material: Cast Iron
• Maximum Suction Lift: 25 ft
• Mounting Type: Base
• Maximum Pressure: 30 to 50 psi
• Frequency Rating: 60 Hz
