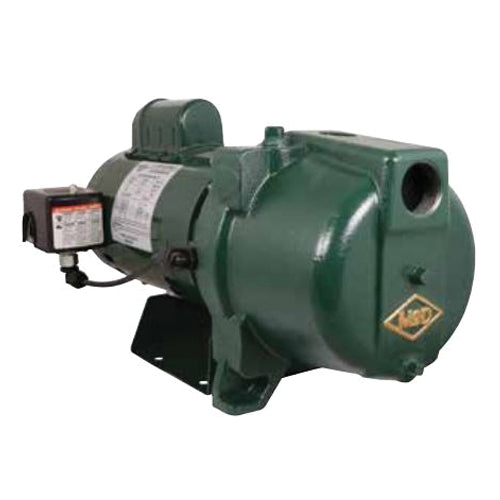

Ay Mcdonald 6156-125 Shallow Well Jet Pump 0.5 Hp

Product Description

The AY MCDONALD 6156-125 is a high-capacity shallow well jet pump built for residential and light commercial water supply systems. Part of the 8300 E Series, this 0.5 HP pump delivers flow rates up to 32 GPM and operates on dual-voltage power at 115 or 230 volts, allowing straightforward field wiring without swapping components. The cast iron construction provides durability in demanding pump house or basement installations. A plastic impeller keeps weight manageable while resisting corrosion in well water service. Licensed plumbers and pump service technicians are the primary installers for this type of unit.

This pump is rated for shallow well applications with a maximum suction lift of 15 feet, making it suitable for residential wells with a static water level within that range. The 1-1/4 inch inlet and 1 inch outlet ports fit standard plumbing configurations common in residential water systems. The 8350 designation within the E Series identifies this as the high-capacity variant, appropriate where higher flow demand is a priority over maximum pressure. Typical install scenarios include new residential well systems, pump replacements, and seasonal pump setups for irrigation or water transfer.

Key Features

• 0.5 HP motor rated at 10.8 amps delivers up to 32 GPM flow capacity
• Dual-voltage operation at 115 or 230 volts for flexible field wiring
• Cast iron body for durability in continuous service applications
• Plastic impeller resists corrosion in well water environments
• 1-1/4 inch inlet and 1 inch outlet match standard residential plumbing fittings
• Maximum suction lift of 15 feet suits typical shallow well installations

Compatibility

Designed for use in the AY MCDONALD 8300 E Series and 8350 High Capacity product family as a shallow well jet pump. Consult system specifications to confirm suction lift, flow, and pressure requirements before installation.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes. Shut off all power at the breaker and depressurize the water system before disconnecting any existing pump. Verify voltage selection matches the available supply circuit before wiring. Ensure the priming port is fully filled and all suction line connections are airtight, as air leaks are the most common cause of shallow well jet pump performance issues.

Technical Specifications

• Series: 8300 E Series
• Type: High Capacity Shallow Well Jet Pump
• Horsepower: 0.5 HP
• Amperage Rating: 10.8 amps
• Voltage Rating: 115/230 volts
• Flow Rate: 32 GPM
• Maximum Suction Lift: 15 feet
• Inlet Size: 1-1/4 inches
• Outlet Size: 1 inch
• Material: Cast Iron
• Impeller Type: Plastic

Standard Information

• Brand: AY MCDONALD
• Manufacturer Part Number: 6156-125
