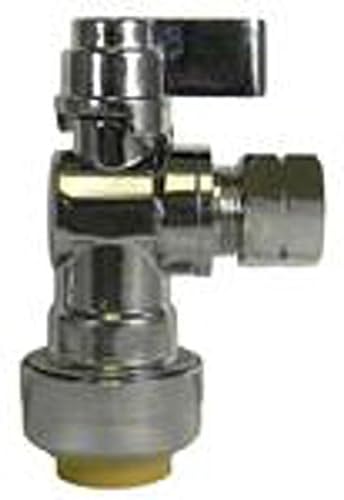

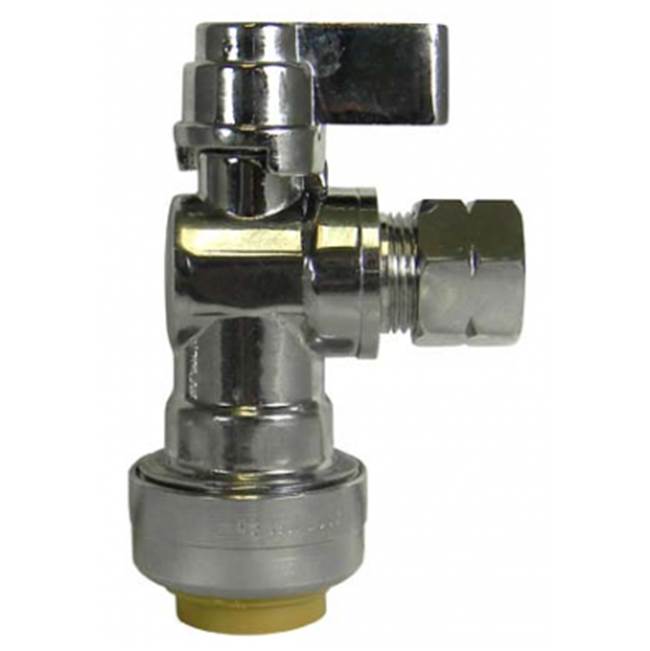

Ay Mcdonald 5426-048 72082q Angle Quarter Turn Supply Stop, 1/2 x 3/8 in, Push-Fit CTS x Compression

Product Description

The AY MCDONALD 5426-048 is a 72082q angle quarter turn supply stop designed for use on copper, PEX, and CPVC. These push-fit fittings eliminate soldering, crimping, and solvent welding. It is designed for above-ground indoor water applications and is pressure rated at 100 PSIG at 160 deg F. The valve features a push-fit CTS x compression end style.

• No solder, no flux, no fire hazards
• Fast installation requiring no special tools
• No lead

Product Highlights

This angle quarter turn supply stop is easy to install and requires no special tools. Suitable for above ground plumbing, water systems and hydronic heating systems.

Product Information

Standard Information

• Brand: AY MCDONALD
• Manufacturer Part Number: 5426-048

Technical Specifications

• Brand: A.Y. McDonald
• Actuator Type: Handle
• Body Material: Brass
• End Style: Push-Fit CTS x Compression
• Finish: Polished Chrome
• Inlet to Outlet Length: 2.44 in
• Nominal Size: 1/2 x 3/8 in
• Orifice Size: 0.39 in
• Pressure Rating: 100 psi WOG
• Series: 72082Q
• Softgoods Material: PTFE Seat Ring
• Temperature Rating: 160 deg F
• Top to Inlet Center: 1.2 in
• Type: Angle
• Product Type: Plumbing Valve
• Manufacturer: AY McDonald
• Part Number: 5426-048-72082Q
• Item Package Quantity: 1
• Measurement System: inch
• Item model number: 5426-048
