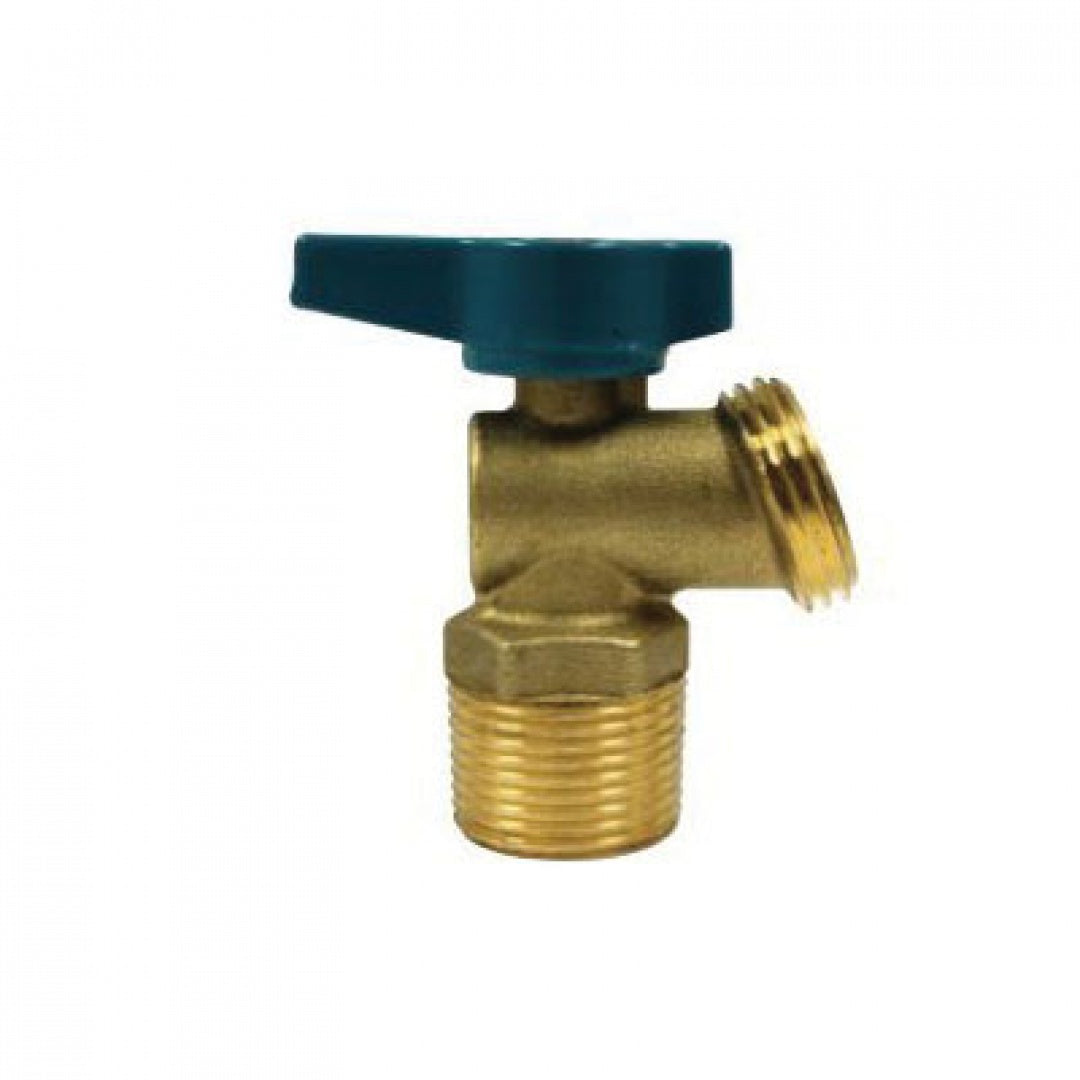

AY McDonald 5424-212 72008QT Quarter-Turn Boiler Drain Valve, 1/2 in Nominal, MNPT x Male Garden Hose Thread

Product Description

AY McDonald 5424-212 is a 72008QT quarter-turn boiler drain valve. It features a nominal size of one-half inch with MNPT x male garden hose thread ends. This valve is rated for 125 psi water, oil, and gas (WOG). The handle actuator allows for easy operation. The valve is made with a brass trim and PTFE seat with NBR O-ring for durability.

• Designed for residential and commercial use
• Complies with NSF/ANSI standards for safe drinking water
• Positive shut-off for reliable performance

Product Highlights

This boiler drain valve is ideal for draining water boilers or other plumbing systems. Its quarter-turn mechanism makes it easy to operate.

Product Information

Standard Information

• Manufacturer: AY McDonald MFG CO
• Part Number: 5424-212

Technical Specifications

• Actuator Type: Handle
• Dimensions: 2.4 in W x 2.58 in H
• End Style: MNPT x Male Garden Hose Thread
• Nominal Size: 1/2 in
• Pressure Rating: 125 psi WOG
• Type: Quarter Turn
• Trim Material: Brass
• Softgoods Material: PTFE Seat/NBR O-Ring
