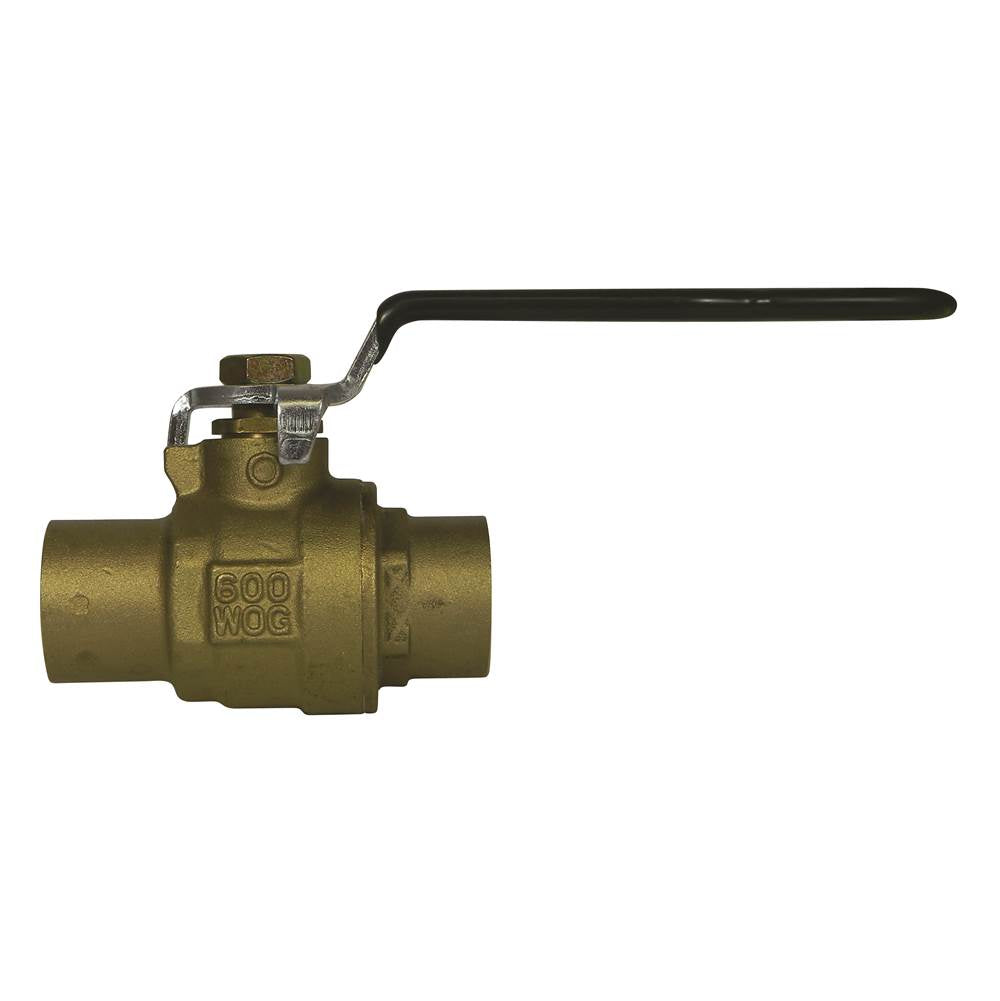

Ay Mcdonald 5420-155 72032S Ball Valve With Handle 1 in Nominal

Product Description

The AY MCDONALD 5420-155 ball valve is constructed from heavy-duty no-lead brass and designed for use in potable water systems. This full port valve allows for maximum flow with minimum pressure drop. It has a 1 in nominal size and C end style. The valve is part of the 72032S series.

• PTFE stem packing/ball disc packing/washer
• The weighted average of the wetted surface of this no lead product contacted by consumable water contains less than one quarter of one percent (0.25%) lead
• Blow-out proof stem

Product Highlights

Full port ball valve made from no-lead brass, designed for potable water systems, and allows maximum flow.

Product Information

Standard Information

• Brand: AY MCDONALD
• Manufacturer Part Number: 5420-155

Technical Specifications

• Brand: A.Y. McDonald
• Body Material: Brass
• End Style: C
• Inlet to Outlet Length: 3.31 in
• Nominal Size: 1 in
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Series: 72032S
• Softgoods Material: PTFE
• Top to Inlet Center: 2.05 in
• Trim Material: Brass Stem
• Product Type: Ball Valve
