Ay Mcdonald 5420-154 ball valve 3/4 in

Product Description

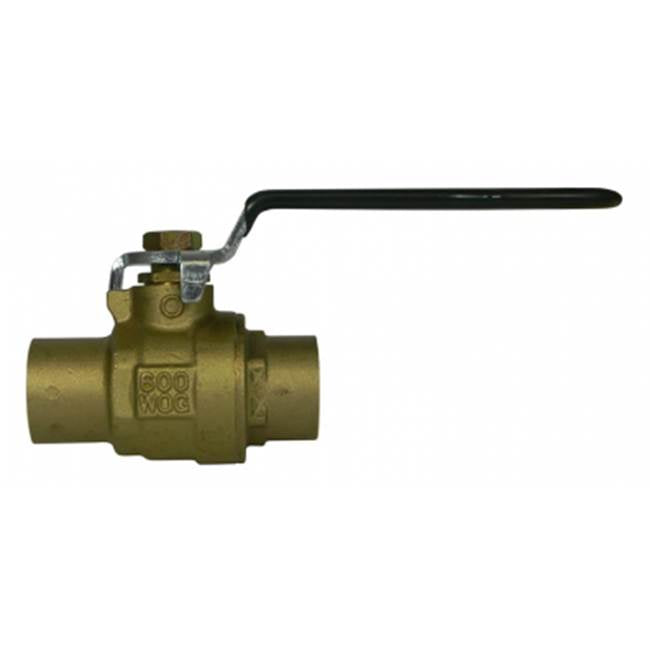

The AY MCDONALD 5420-154 is a ball valve with a 3/4 inch nominal size. It features a brass body and a full port design. This valve is suitable for various plumbing applications.

• Blow-out proof stem
• The weighted average of the wetted surface of this no lead product contacted by consumable water contains less than one quarter of one percent (0.25%) lead
• PTFE stem packing/ball disc packing/washer

Product Highlights

The AY MCDONALD ball valve features a brass body, full port, and PTFE softgoods. Suitable for applications requiring a reliable shutoff.

Product Information

Standard Information

• Brand: AY MCDONALD
• Manufacturer Part Number: 5420-154

Technical Specifications

• Product Type: Ball Valve
• Body Material: Brass
• Inlet to Outlet Length: 2.72 in
• Nominal Size: 3/4 in
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: PTFE
• Top to Inlet Center: 1.85 in
• Trim Material: Brass Stem
• Manufacturer: A.Y. McDonald
