Ay Mcdonald 5420-153 72032s ball valve sweat-nl

Product Description

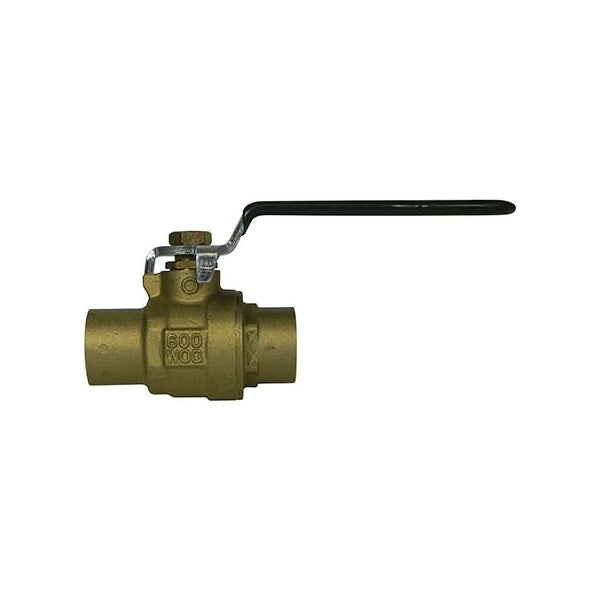

The AY MCDONALD 5420-153 is a 72032S ball valve with sweat inlet and outlet connections, designed for use in potable water systems. Constructed from heavy-duty no-lead brass, this full port valve allows for maximum flow with minimum pressure drop. It features a lever handle and is part of the plumbing product line with a 1/2 inch valve size.

• PTFE stem packing/ball disc packing/washer
• The weighted average of the wetted surface of this no lead product contacted by consumable water contains less than one quarter of one percent (0.25%) lead
• Blow-out proof stem

Product Highlights

Full port ball valve made of NL brass with sweat connections, ideal for plumbing applications requiring maximum flow.

Product Information

Standard Information

• Brand: AY MCDONALD
• Manufacturer Part Number: 5420-153

Technical Specifications

• Part Type: Ball Valve
• Series: 72032S
• Inlet Connection: Sweat
• Outlet Connection: Sweat
• Inlet Connection Size: 1/2
• Outlet Connection Size: 1/2
• Handle Type: Lever
• Material: NL Brass
• Operating Head Rotation: 90
• Valve Size: 1/2
• Product Line: Plumbing
• Product Class: 157
• Commercial Category: Plumbing Valves
• Commercial Sub Category: Ball Valves - NL
• Commercial Style: SWT x SWT
• Brand: A.Y. McDonald
• Body Material: Brass
• End Style: C
• Inlet to Outlet Length: 1.93 in
• Nominal Size: 1/2 in
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: PTFE
• Top to Inlet Center: 1.5 in
• Trim Material: Brass Stem
