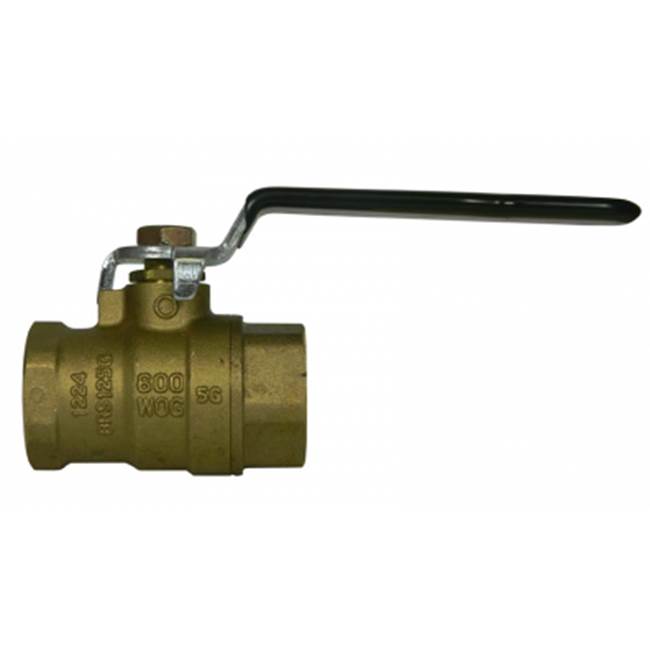

Ay Mcdonald 5420-152 72032t ball valve 1 in nominal fnpt

Product Description

The AY MCDONALD 5420-152 No-Lead Full Port Ball Valve is constructed from heavy-duty no-lead brass. It can be used with a full range of liquids and gases in commercial, industrial, and residential applications. Full port valves allow for maximum flow with minimum pressure drop. The valve has a 1 in nominal size and FNPT end style.

• PTFE ball/disc packing
• Blow-out proof stem
• Lead-free end piece

Product Highlights

This AY McDonald ball valve features a full port, PTFE softgoods, and a blow-out proof stem design. Suitable for gas and liquid applications.

Product Information

Standard Information

• Brand: AY MCDONALD
• Manufacturer Part Number: 5420-152

Technical Specifications

• Brand: A.Y. McDonald
• Actuator Type: Lever Operated
• Ball Material: Brass
• Body Material: Brass
• End Style: FNPT
• Inlet to Outlet Length: 2.99 in
• Media: Gas/Liquids
• Nominal Size: 1 in
• Port Type: Full
• Pressure Rating: 600 psi
• Softgoods Material: PTFE
• Top to Inlet Center: 2.05 in
• Trim Material: PTFE Stem
• Series: 72032T
• Type: Full Port, Lead Free
• Connection Type: FNPT x FNPT
• Opening Size: 0.98 inch
• Stem: Brass
• Packing: Teflon
• Actuation/Operator: Standard Lever Handle
• Product Type: Ball Valve
• MPN: 5420-152
• UPC: 053565533315
