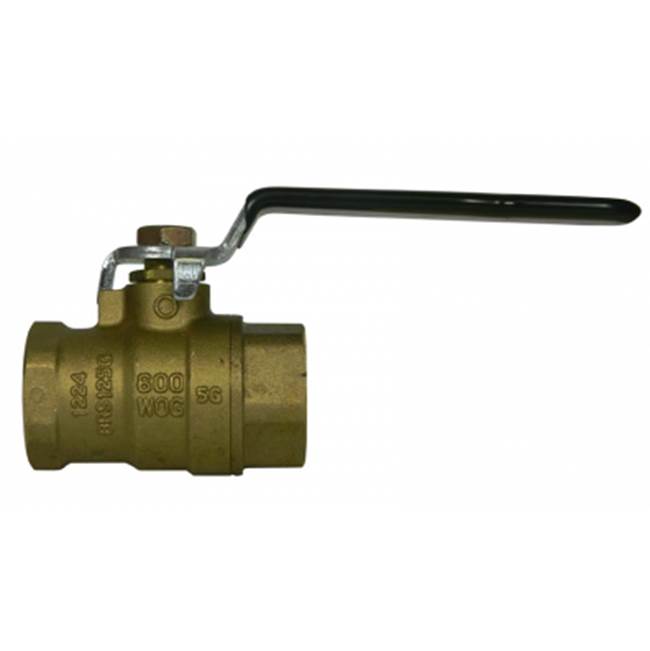

Ay Mcdonald 5420-151 Ball Valve, 3/4 in Nominal, FNPT End Style

Product Description

The AY MCDONALD 5420-151 no-lead full port ball valve is constructed from heavy-duty no-lead brass. It can be used with a full range of liquids and gases in commercial, industrial, and residential applications. Full port valves allow for maximum flow with minimum pressure drop. The valve has a 3/4 in diameter and FNPT end style.

• PTFE ball/disc packing
• Blow-out proof stem
• Lever Operated Actuator

Product Highlights

Constructed from heavy duty no-lead brass, this full port ball valve is suitable for use with a full range of liquids and gases.

Product Information

Standard Information

• Brand: AY MCDONALD
• Manufacturer Part Number: 5420-151

Technical Specifications

• Brand: A.Y. McDonald
• Actuator Type: Lever Operated
• Ball Material: Brass
• Body Material: Brass
• End Style: FNPT
• Inlet to Outlet Length: 2.48 in
• Media: Gas/Liquids
• Nominal Size: 3/4 in
• Port Type: Full
• Pressure Rating: 600 psi
• Softgoods Material: PTFE
• Top to Inlet Center: 1.85 in
• Trim Material: PTFE Stem
• Product Type: Ball Valve
