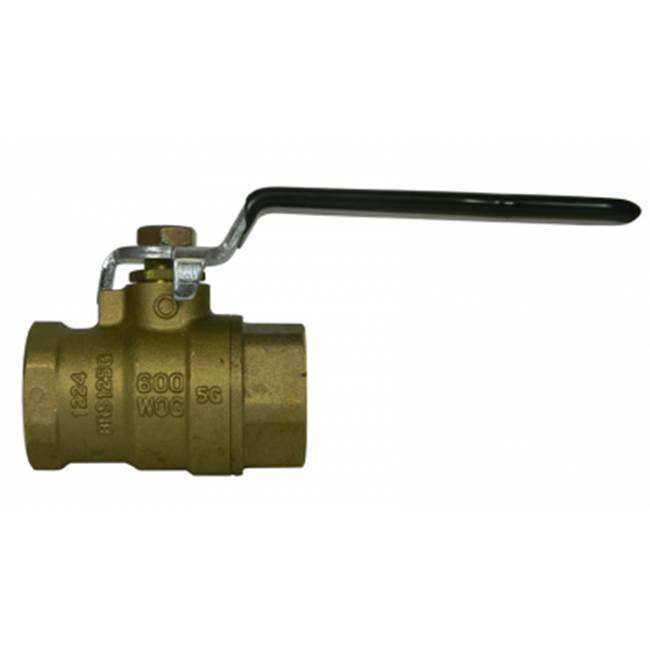

Ay Mcdonald 5420-150 72032t ball valve 1/2 in nominal

Product Description

The AY MCDONALD 5420-150 No-Lead Full Port Ball Valve is constructed from heavy-duty no-lead brass and can be used with a full range of liquids and gases in commercial, industrial, and residential applications. Full port valves allow for maximum flow with minimum pressure drop.

• PTFE ball/disc packing
• Lead free: The weighted average of the wetted surface of this no-lead product contacted by consumable water contains less than one quarter of 1% (0.25%) lead
• Blow-out proof stem

Product Highlights

This AY McDonald ball valve features a brass body, PTFE softgoods, and a lever-operated actuator. Suitable for gas and liquid applications.

Product Information

Standard Information

• Brand: AY MCDONALD
• Manufacturer Part Number: 5420-150

Technical Specifications

• Brand: A.Y. McDonald
• Actuator Type: Lever Operated
• Ball Material: Brass
• Body Material: Brass
• End Style: FNPT
• Inlet to Outlet Length: 2.13 in
• Media: Gas/Liquids
• Nominal Size: 1/2 in
• Port Type: Full
• Pressure Rating: 600 psi
• Softgoods Material: PTFE
• Top to Inlet Center: 1-1/2 in
• Trim Material: PTFE Stem
• Product Type: Ball Valve
