AY McDonald 5132-222 1 Ball Curb FNPT x MNPT - NL

Product Description

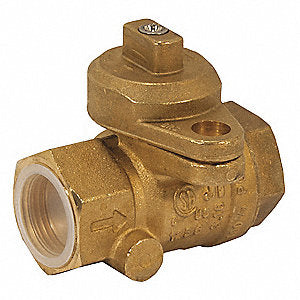

The A Y McDonald 5132-222 is a 1-inch nominal ball curb stop with FNPT x MNPT end styles. It is rated for a pressure of 300 psi and is designed to handle water media. The valve features a brass ball and measures 4.21 inches from inlet to outlet with a top to inlet center measurement of 2.64 inches.

• Designed for water media
• Includes EPDM softgoods and port seal
• Complies with multiple industry standards

Product Highlights

This ball curb stop is suitable for plumbing applications where reliable shut-off capabilities are needed. Its durable construction ensures long-lasting performance in various environments.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• UPC: 053565588766

Technical Specifications

• Ball Material: Brass
• Dimensions: 1 inch Diameter
• End Style: MNPT x FNPT
• Inlet to Outlet Length: 4.21 inches
• Media: Water
• Nominal Size: 1 inch
• Pressure Rating: 300 psi
• Series: 76107W
• Softgoods Material: EPDM
• Top to Inlet Center: 2.64 inches
• Trim Material: EPDM Port Seal
