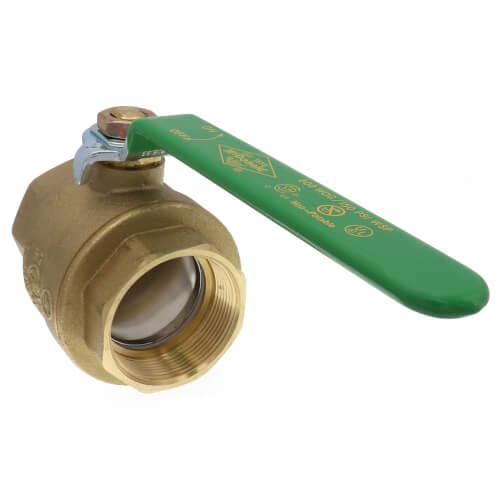

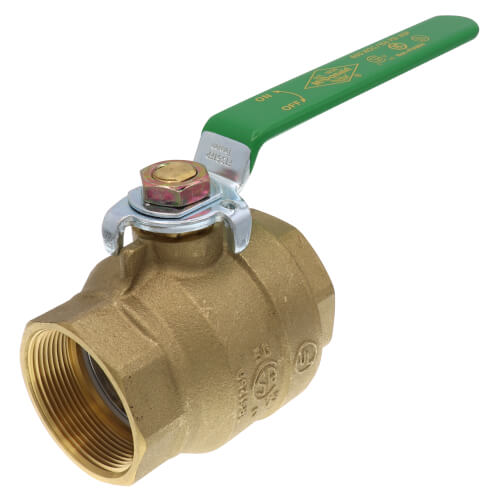

A. Y. McDonald 4901-115 10710 2 Gas Ball Valve FNPT X FNPT CSA

Product Description

A.Y. McDonald 4901-115 is a quarter-turn gas ball valve designed for low-pressure applications. This two-piece valve features FNPT connections and is suitable for residential, commercial, and industrial gas use. The valve operates under pressures of up to 150 psi and can withstand temperatures from -40 to 125 degrees Fahrenheit.

• Full port design for unrestricted flow
• Chrome plated brass ball construction
• Forged brass body for durability

Product Highlights

Ideal for low-pressure gas applications, this valve ensures reliable shut-off functionality while meeting ANSI and CSA standards.

Product Information

Standard Information

• Manufacturer: A.Y. McDonald MFG CO
• Model Number: 4901-115

Technical Specifications

• Nominal Size: 2 in
• Connection Type: FNPT
• Ball Material: Chrome Plated Brass
• Body Material: Forged Brass
• Pressure Rating: 150 psi
• Temperature Rating: -40 to 125 degrees Fahrenheit
• Inlet to Outlet Length: 4.33 in
• Top to Inlet Center: 3.47 in
• Trim Material: Brass Stem
• Softgoods Material: PTFE
• Standards/Certifications: ANSI Z21.15, cCSAus B16.44, MSS-SP-110, UL 842
