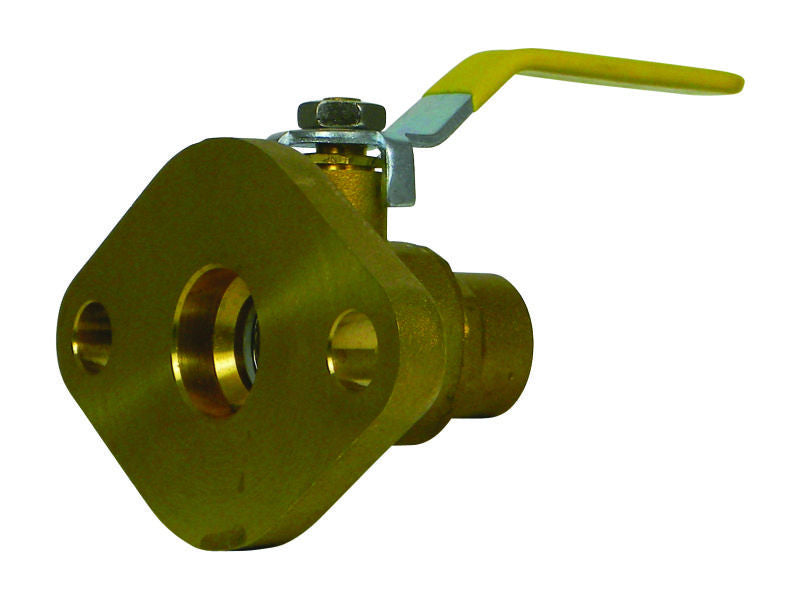

AY MCDONALD 4420-439 1 FULL PORT BALL VALVE SWEAT X FLANGE

Product Description

The A.Y. McDonald 4420-439 is a one-inch full port ball valve designed for sweat x flange applications. This valve is constructed from forged brass and features a lever handle for easy operation. It is suitable for a range of plumbing and HVAC applications where non-potable water is involved.

• Forged brass construction for durability
• Operating temperature range from thirty-two to three hundred fifty degrees Fahrenheit
• Pressure rating of four hundred psi water, oil, and gas (WOG)

Product Highlights

The A.Y. McDonald 4420-439 provides reliable isolation capabilities, making it ideal for use in commercial, industrial, or residential setups.

Product Information

Standard Information

• Brand: A.Y. McDonald
• Part Number: 843590

Technical Specifications

• Model Number: 2029S
• Product Type: Ball Valve
• Nominal Size: 1 in
• End Style: C x Flanged
• Ball Material: Chrome Plated Brass
• Body Material: Forged Brass
• Trim Material: Brass Stem and PTFE Seat
• Softgoods Material: NBR
• Inlet to Outlet Length: 3.05 in
• Top to Inlet Center: 1.85 in
• Pressure Rating: 400 psi WOG
• Temperature Rating: 32 to 350 deg F
• Series: 2029S
