AY McDonald 4420-438 3/4 Full Port Ball Valve Sweat X Flange

Product Description

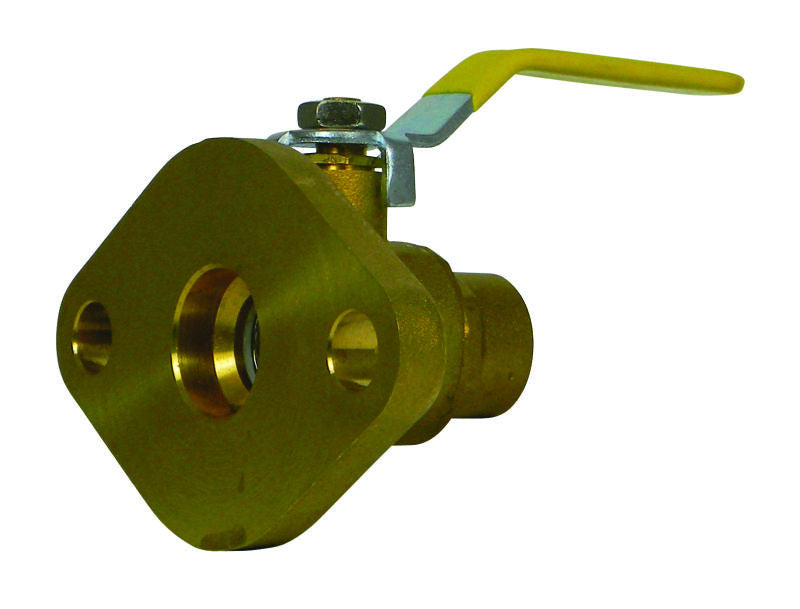

The A.Y. McDonald 4420-438 is a 3/4 inch ball valve designed for efficient fluid control in plumbing systems. This full port isolation ball valve features a sweat x flange connection and is made from forged brass for durability. It is suitable for commercial, industrial, and residential applications.

• Non-potable ball valve
• Full port design for maximum flow
• Pressure rating of four hundred psi WOG

Product Highlights

This valve is ideal for isolating systems and is built to withstand varying temperatures.

Product Information

Standard Information

• Brand: A.Y. McDonald
• Manufacturer: A.Y. McDonald MFG Co

Technical Specifications

• Model Number: 2029S
• Nominal Size: 3/4 inch
• Body Material: Forged Brass
• Ball Material: Chrome Plated Brass
• End Style: Sweat x Flanged
• Pressure Rating: 400 psi WOG
• Temperature Rating: 32 to 350 degrees Fahrenheit
• Inlet to Outlet Length: 2.61 inches
• Top to Inlet Center: 1.69 inches
• Softgoods Material: NBR
