AY McDonald 4420-434 2029T 1 1/4 Full Port Ball Valve FNPT x Flange

Product Description

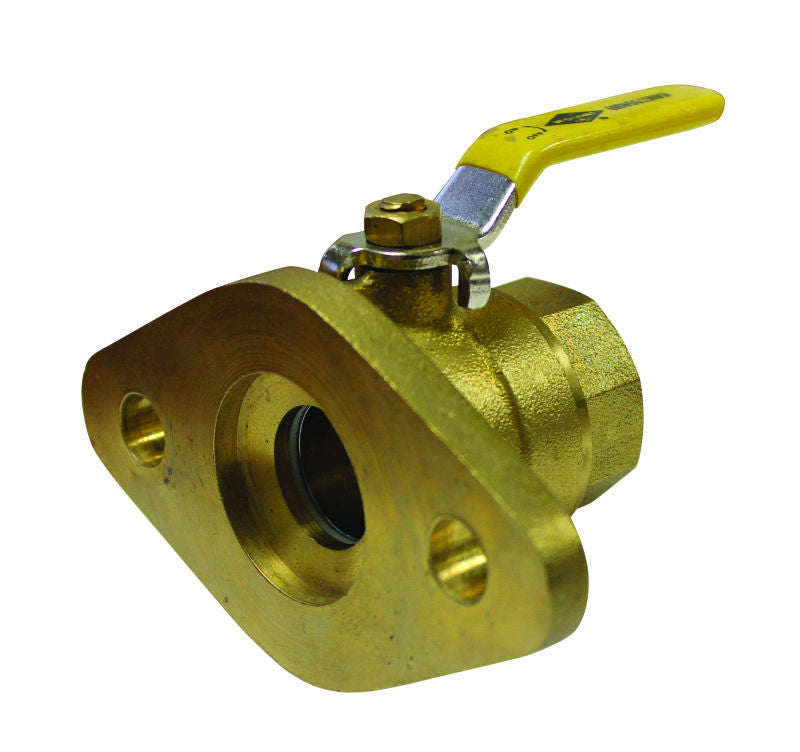

The A.Y. McDonald 4420-434 is a full port ball valve designed for non-potable applications. This valve features a FNPT x flange end style and is made from forged brass for durability. It handles pressure up to four hundred psi and operates within a temperature range of thirty-two to three hundred fifty degrees Fahrenheit.

• Full port design for maximum flow.
• Blow-out proof stem enhances safety.
• Isolation valve suitable for circulator pumps.

Product Highlights

The 4420-434 is ideal for commercial, industrial, and residential applications. Its robust construction ensures reliability and longevity in various plumbing systems.

Product Information

Standard Information

• Manufacturer: A.Y. McDonald Mfg Co
• Product Type: Ball Valve

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Forged Brass
• Nominal Size: 1-1/4 inches
• Port Type: Full
• Pressure Rating: 400 psi WOG
• Temperature Rating: 32 to 350 degrees Fahrenheit
• Inlet to Outlet Length: 2.83 inches
• Top to Inlet Center: 2.63 inches
• Softgoods Material: NBR
• Trim Material: Brass Stem and PTFE Seat
• Series: 2029T
