AY McDonald 4420-151 2032T 3/4 FULL PORT BALL VALVE FNPT

Product Description

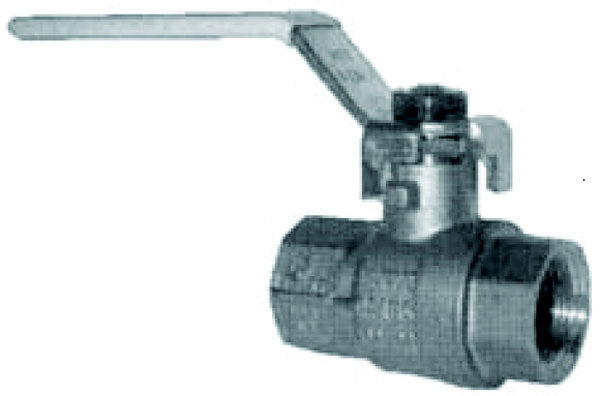

A.Y. McDonald, MPN 4420-151, offers a reliable ball valve designed for various plumbing applications. This valve measures three-fourths of an inch and features female NPT ends. Constructed for a pressure rating of six hundred psi and suitable for gas and liquid media, it is operated via a lever. The valve includes a forged brass ball and a brass body, ensuring durability and longevity.

• Constructed with a blow-out proof stem.
• Utilizes PTFE ball/disc packing for secure sealing.
• Designed to meet ANSI B1.20.1 standards and is CSA certified.

Product Highlights

This valve is ideal for both residential and commercial plumbing systems. Its full port design allows for maximum flow, reducing pressure loss.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• Part Number: 4420-151

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Forged Brass
• Body Material: Brass
• Dimensions: 0.78 inches Diameter
• End Style: FNPT
• Inlet to Outlet Length: 2.34 inches
• Media: Gas/Liquids
• Nominal Size: 3/4 inches
• Port Type: Full
• Pressure Rating: 600 psi
• Softgoods Material: PTFE
• Top to Inlet Center: 1.95 inches
• Trim Material: Brass Stem
