A Y McDonald 4215-199 10584 3/4 SQ HD GAS PV W/CHECK 5# CSA

Product Description

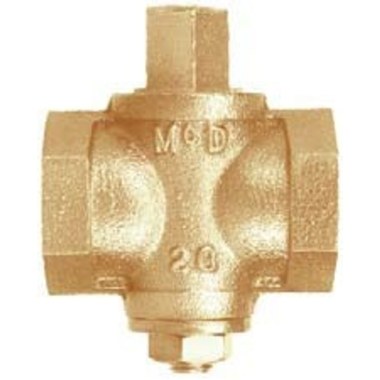

The A Y McDonald 4215-199 is a square head plug valve designed for low pressure gas applications. This valve has a nominal size of three-fourths inch and features a female National Pipe Thread (FNPT) connection. It operates under a pressure rating of five pounds per square inch and is suitable for use with non-potable applications. The valve is constructed from brass, enabling durability and reliability in gas service use.

• Brass body and plug
• Temperature range: thirty-two to one hundred twenty-five degrees Fahrenheit
• Factory set configuration

Product Highlights

This plug valve is designed for use in indoor gas systems, functioning effectively between the meter outlet and the inlet of gas appliances.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• Product Type: Non-Potable Low Pressure

Technical Specifications

• Body Material: Brass
• End Style: FNPT
• Media: Gas
• Nominal Size: 3/4 in
• Pressure Rating: 5 psig
• Series: 10584
• Temperature Rating: 32 to 125 deg F
• Top to Inlet Center: 1.53 in
