AY McDonald 4215-193 10596 3/4 Flat Head Gas PV W/Check 5# CSA

Product Description

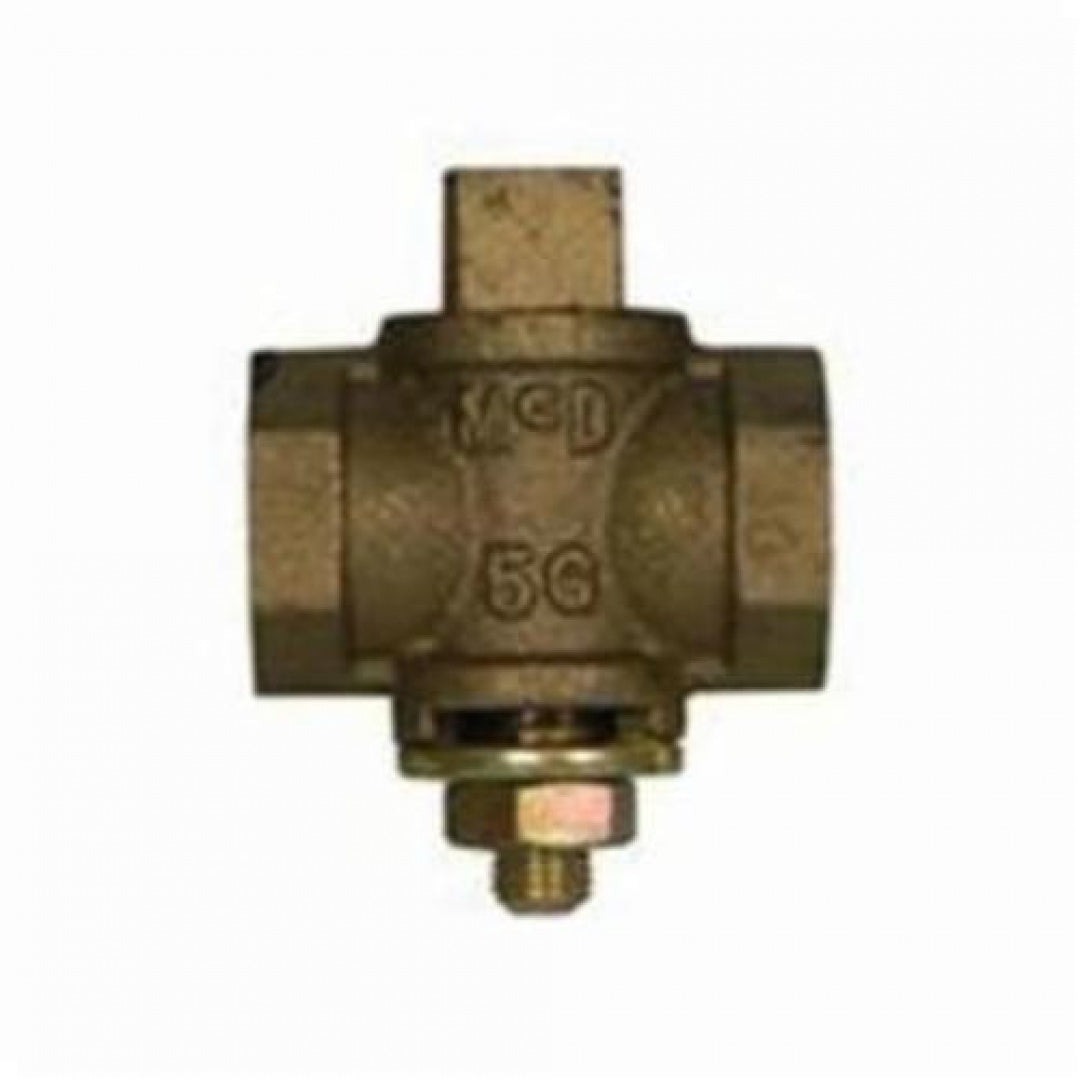

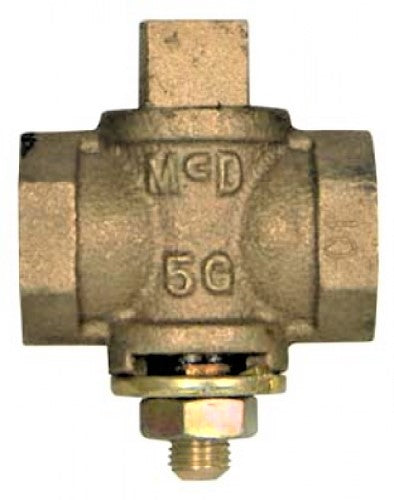

The A.Y. McDonald 4215-193 is a low-pressure gas plug valve designed for indoor use on piping systems. This valve features a flat tee head and a check mechanism, ensuring reliable operation in gas applications. With a bronze body and a nominal size of three-fourths of an inch, it efficiently controls gas flow between the meter outlet and the gas appliance inlet.

• Flat tee head with check for reliable sealing
• Bronze construction ensures durability
• Designed for low-pressure natural or propane gas applications

Product Highlights

This valve is CSA certified and operates effectively at a maximum pressure of five psi.

Product Information

Standard Information

• Manufacturer: A.Y. McDonald Manufacturing
• Model: 10596

Technical Specifications

• Body Material: Bronze
• Nominal Size: 3/4 in
• Connection Type: FNPT
• Inlet to Outlet Length: 2.32 in
• Pressure Rating: 5 psi
• Dimensions: 2.98 in H
• Top to Inlet Center: 1.59 in
• Media: Gas
