A Y McDonald 4210-138 10558 1 Lever Handle Gas PV W/Check 25#

Product Description

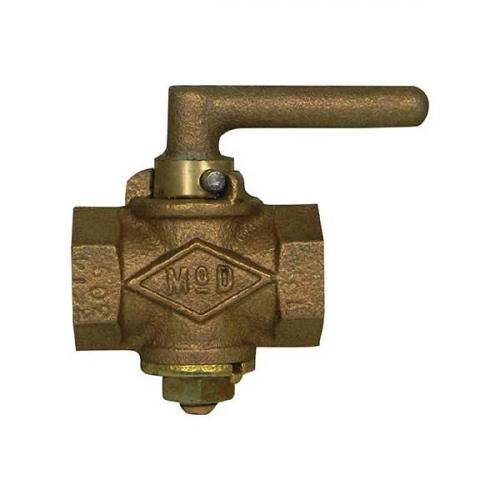

A Y McDonald 4210-138 is a plug valve designed for non-potable low pressure. It features a one-inch nominal FNPT connection and operates at a pressure of twenty-five psig. This valve works effectively within a temperature range of thirty-two to one hundred twenty-five degrees Fahrenheit and is suitable for gas media.

• Lever handle actuator for easy operation.
• Brass body construction ensures durability.
• Factory set to prevent tampering with the bottom nut.

Product Highlights

The A Y McDonald 4210-138 plug valve provides reliable control in gas applications. It is certified to industry standards for safety and performance.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• Series: 10558

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Brass
• End Style: FNPT
• Media: Gas
• Nominal Size: 1 in
• Pressure Rating: 25 psig
• Temperature Rating: 32 to 125 deg F
• Top to Inlet Center: 2.78 in
• Type: Non-Potable Low Pressure
