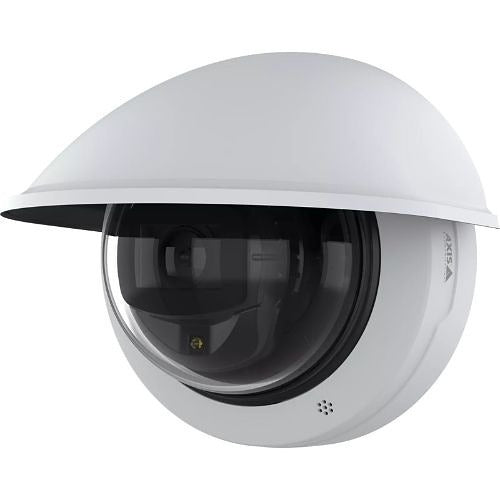

Axis Communications 02816-001 4K Ip Dome Camera

Product Description

The AXIS COMMUNICATIONS 02816-001 is a fixed IP dome camera designed for professional security installations. Based on the M4228-LVE model designation, this unit delivers 4K resolution imaging with built-in AI analytics capabilities, onboard audio, and an infrared illumination range of 3 to 7 meters. Rated IP66 for dust-tight and weather-resistant operation and IK10 for impact resistance, this camera is built for demanding environments. Security integrators and low-voltage technicians install this unit in commercial and light industrial surveillance systems where high-resolution coverage and intelligent video analytics are required.

The 02816-001 is suited for outdoor and semi-outdoor installations where vandal resistance and environmental protection are priorities. Its IK10 impact rating and IP66 weatherproofing make it appropriate for building perimeters, parking structures, and covered exterior mounting locations. The integrated audio capability supports installations where two-way or monitoring audio is part of the system design. AI-based analytics allow on-camera processing for motion detection, object classification, and related functions without requiring separate server-side processing for basic analytics tasks.

Key Features

• 4K resolution for high-detail imaging in demanding surveillance applications
• AI analytics capable of on-camera object detection and classification
• Integrated audio support for monitoring or two-way communication
• Infrared illumination range of 3 to 7 meters for low-light performance
• IP66-rated enclosure for dust-tight and weatherproof operation
• IK10 vandal-resistant construction for exposed or high-risk mounting locations

Compatibility

Designed as an OEM network IP dome camera intended for integration into standard ONVIF-compatible video management systems and IP surveillance infrastructure.

Installation Notes

This camera is installed by licensed low-voltage technicians or security system integrators. Power down the network switch port or PoE injector before making wiring connections. Follow local codes and the NEC for low-voltage cabling and conduit requirements. Do not exceed the specified mounting torque for the enclosure hardware, and ensure the mounting surface is structurally adequate for the camera weight and any wind or vibration loads at the installation site.
