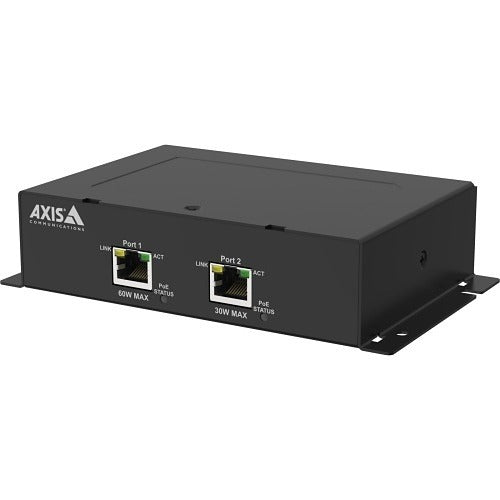

Axis Communications 02726-001 2-port Poe Extender

Product Description

The AXIS COMMUNICATIONS 02726-001 is a 2-port Power over Ethernet (PoE) extender designed to extend the reach of PoE-capable network installations beyond the standard 100-meter cable distance limit. It allows network technicians to push PoE signals and data further down the line without requiring an additional network switch or separate power source at the extension point. The unit is sold individually and is intended for structured cabling environments where IP cameras, access control readers, or other PoE-powered devices need to be placed at extended distances from the nearest switch or injector.

The 02726-001 is suited for commercial and light industrial installations where network runs exceed standard limits. Typical applications include IP surveillance deployments, access control infrastructure, and building automation networks where extending a single PoE drop to two downstream devices is required. Installation is performed by licensed low-voltage technicians or network cabling professionals.

Key Features

• Extends PoE signal and data beyond the standard 100-meter distance limitation
• 2-port output supports connection of two downstream PoE-powered devices
• No external power supply required at the extension point
• Single-unit packaging for straightforward per-drop deployment
• Designed for integration into structured cabling systems

Compatibility

Designed as an OEM-style PoE extender compatible with standard 802.3af and 802.3at PoE network infrastructure. Confirm downstream device power requirements against the extender output specifications before installation.

Installation Notes

Installation should be performed by a qualified low-voltage or network cabling technician in accordance with applicable local codes and TIA/EIA structured cabling standards. Power down or disconnect the upstream PoE switch port before making cable connections at the extender. Verify that total cable run lengths and cumulative power draw of downstream devices fall within the extender operating parameters before commissioning.
