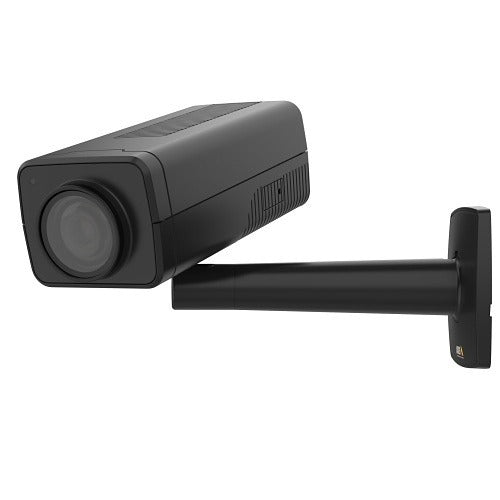

Axis Communications 02220-001 Ip Block Camera 2MP

Product Description

The AXIS COMMUNICATIONS 02220-001 is a 2-megapixel IP block camera designed for professional video surveillance installations. Built around the Q1715 platform, it features a varifocal 4 to 84mm motorized zoom lens that allows installers to dial in the field of view without physically adjusting the lens by hand. An HDMI output enables direct local monitoring on compatible displays during setup or live operation. This camera is intended for installation by licensed security integrators and professional AV or low-voltage technicians in commercial and industrial environments.

The Q1715 block camera suits applications where flexibility in lens choice and mounting orientation is required. Its block-style form factor makes it well suited for use inside custom enclosures, pan-tilt-zoom housings, or traffic and transportation monitoring systems. The motorized varifocal zoom range of 4 to 84mm supports both wide-area coverage and long-distance identification from a single fixed mounting point, reducing the number of cameras needed to cover a scene.

Key Features

• 2-megapixel image sensor for full HD video capture
• Motorized varifocal lens with 4 to 84mm zoom range for remote focus adjustment
• HDMI output for direct local display connection during commissioning or live monitoring
• IP block camera form factor compatible with third-party housings and pan-tilt heads
• Sold individually as a single unit

Compatibility

Designed as an OEM-style IP block camera for integration into professional surveillance systems that support standard ONVIF or AXIS-compatible network camera connections.

Installation Notes

Installation should be performed by a qualified low-voltage technician or licensed security integrator familiar with IP camera network configuration. Power down the receiving network switch port before making physical connections. Ensure the mounting housing or enclosure is rated for the installation environment before securing the camera body. Follow applicable local codes and the NEC for low-voltage wiring practices.
