Axiom SFP-10 Hydronic Side Stream Filter Package 1-10 GPM 3/4 Inch FNPT 10 Inch Filter

Product Description

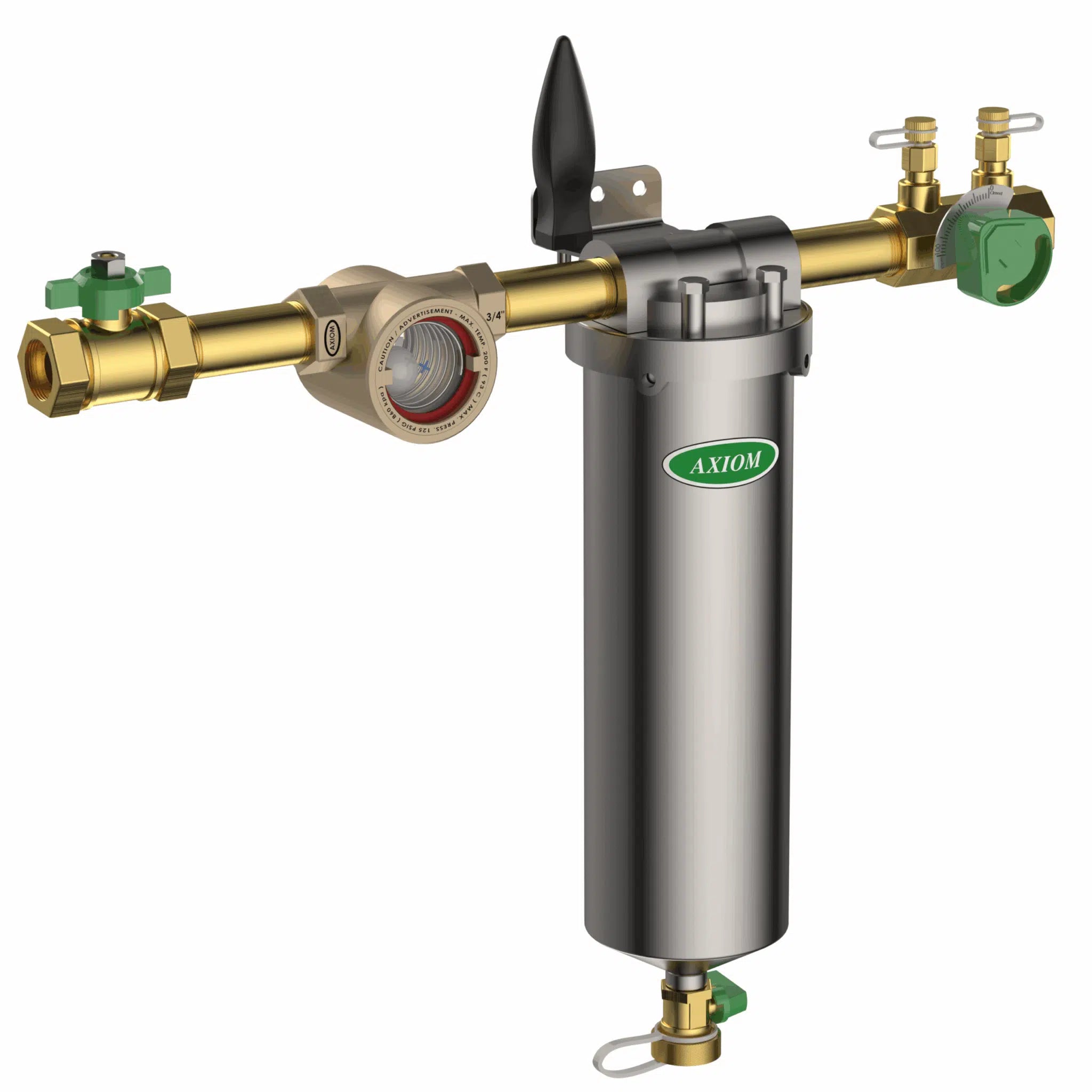

The Axiom SFP-10 Hydronic Sidestream Filter Package provides effective protection against debris in heating and cooling systems. This FilterPak includes a 3/4 inch FNPT connection, 1-10 GPM (0-38 l/min) flow rate, and a 10 inch (254mm) DOE cotton wound filter with a 0.4 gallon (1.5L) vessel volume. It features a double o-ring housing, ball valve drain, and tempered borosilicate glass windows for fluid visibility. The filter vessel can also be used for chemical dosing.

• Double o-ring on the filter housing for reliable leak-free cartridge replacements.
• Ball valve drain with hose connection and cap ensures safe fluid handling.
• Standard DOE 25 micron cotton wound filter cartridge included, with 5 micron filters available.

Product Highlights

Provides effective protection against debris in hydronic heating and cooling systems, reducing maintenance and extending system life.

Product Information

Standard Information

• Brand: AXIOM
• Manufacturer Part Number: SFP-10
• Country of Origin: Canada

Technical Specifications

• Model: FilterPak
• Product Type: Filter
• Connection Size: 3/4 inch FNPT
• Micron Rating: 25
• Max. Temperature: 200 °F (93 °C)
• Max. Pressure: 125 psi (860 kPa)
• Compatible Fluids: Water, Propylene glycol, Ethylene glycol, Methanol (50%), Ethanol (50%)
• Vessel Volume: 0.4 Gallon (1.5 Liter)
