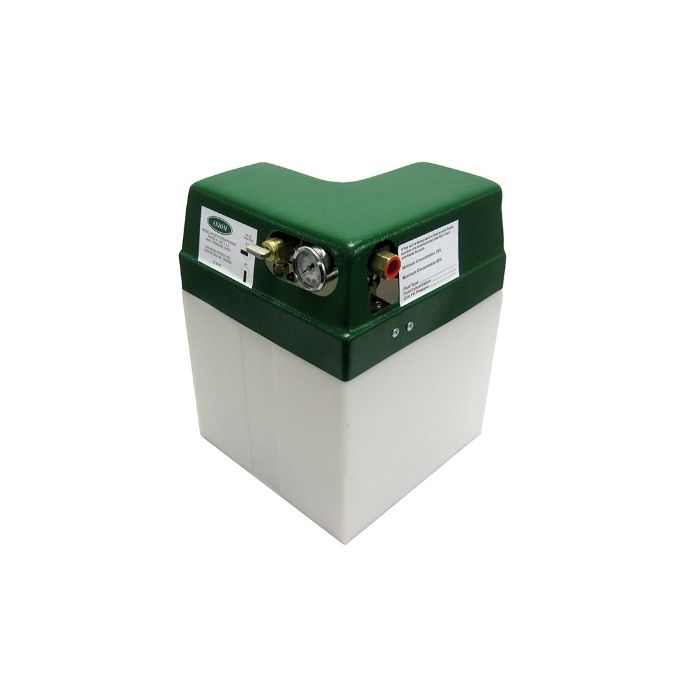

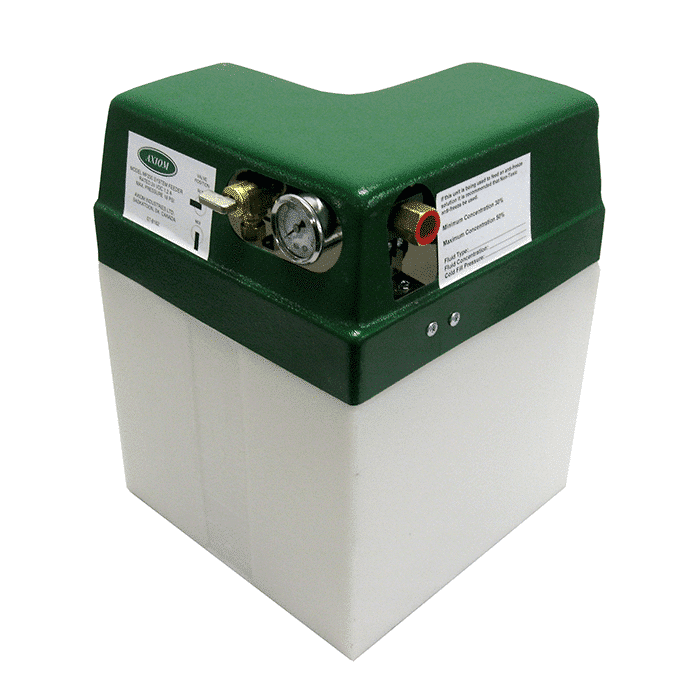

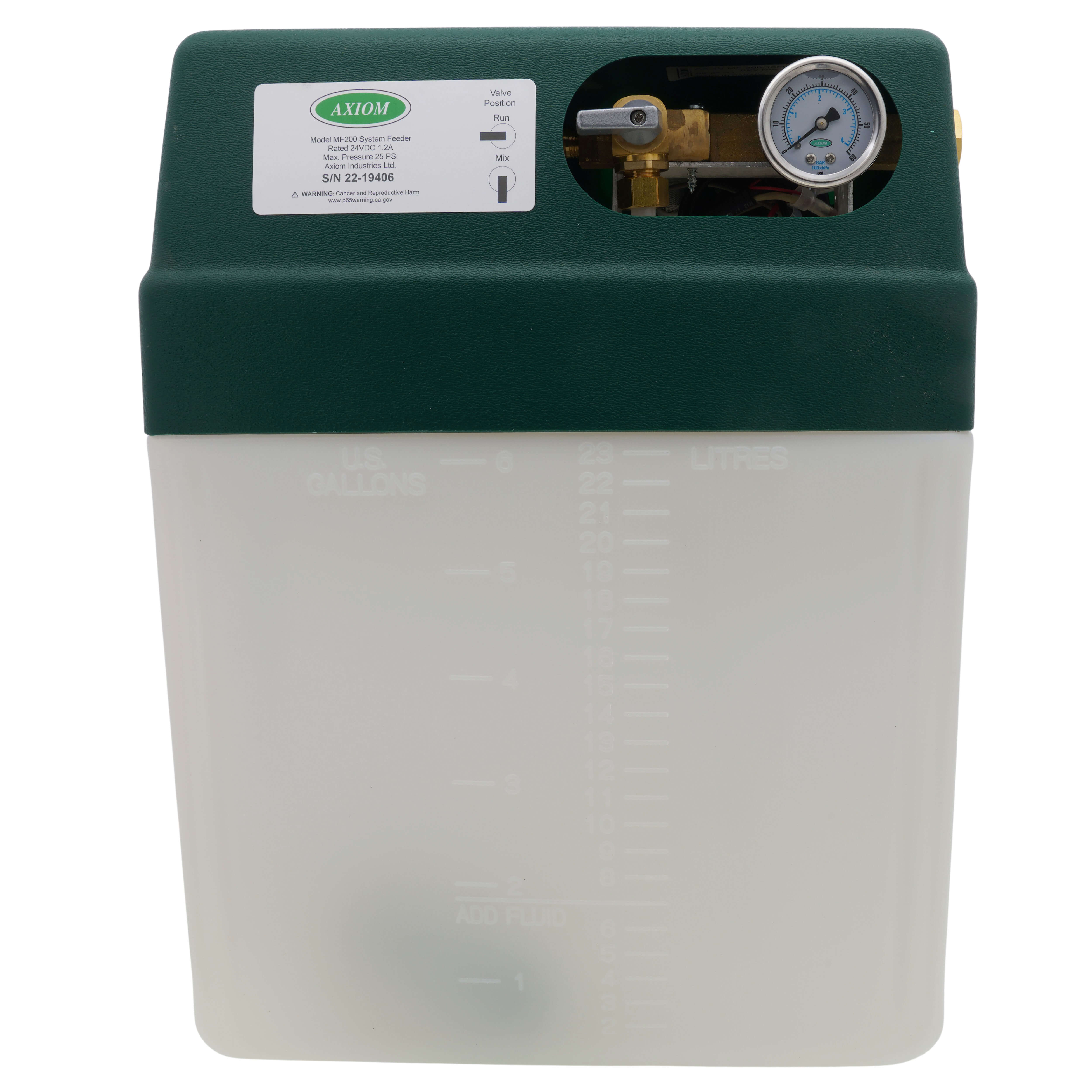

Axiom MF200 6G hydronic feed sys 115V

Product Description

The AXIOM MF200 is a hydronic feed system designed for feeding and pressurizing closed hydronic systems. It is compatible with both water and glycol/water solutions, making it suitable for small boiler/chiller systems, snow/ice melt circuits, outside air heating/cooling glycol coils, and solar heating systems. This feeder operates effectively in systems not requiring cold static fill pressures higher than 25 psig. It plugs into a standard 115V AC outlet.

• 6.0 US gallon (22.7 liter) tank for storage and mixing.
• Diaphragm pump can run dry without damage.
• No direct connection to potable water supply eliminates need for backflow prevention.

Product Highlights

Efficiently feeds and pressurizes closed hydronic systems, preventing major floods and providing early leak detection.

Product Information

Standard Information

• Brand: AXIOM
• Manufacturer Part Number: MF200
• Country of Origin: Canada

Technical Specifications

• Power Supply: 115V AC, 60Hz
• Rated Power: 50 Watts AC
• Tank Capacity: 6.0 Gallons (22.7 Liters)
• System Connection: 1/2" FPT
• Pump Flow Rate: 0.7 gpm (0.04 l/s)
• Pump Self-priming: Up to 4 ft (1.2m)
• Pressure Switch Adjustable Range: 10-25 psig (70-170 kPa)
• Factory Cut-out Pressure: 15 psig (104 kPa)
• Max Glycol Concentration: 50%
• Finish: Galvanized Steel
• Number of Pumps: 1

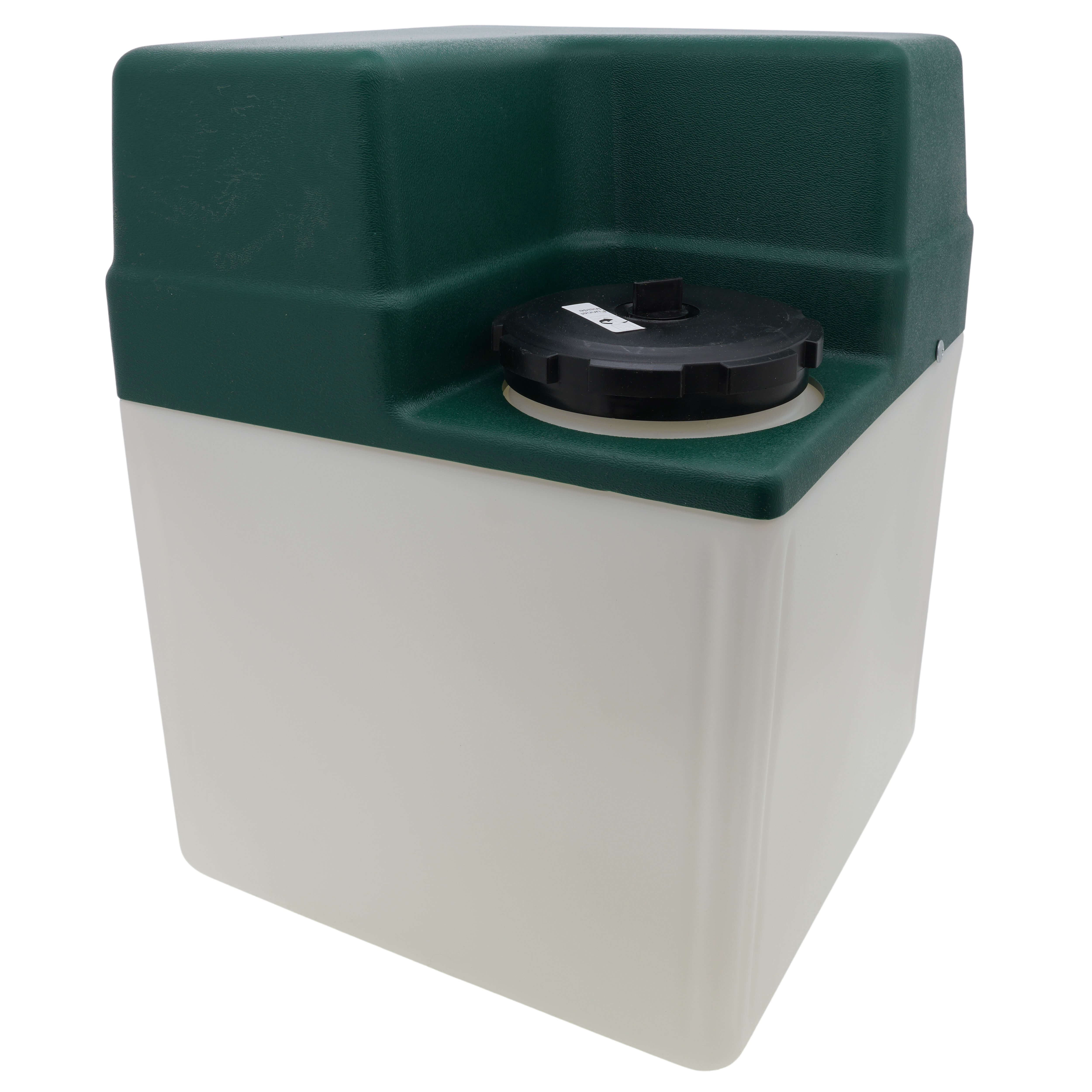

• Tank Fill/Access Opening: 125 mm (5 inches)
• Pump Suction: Hose with inlet strainer and check valve
• Pump Protection: Fuse Protection
• Low Fluid Level Cut-out: Float Switch
• Air Purging/Agitation: Manual Diverter Valve
• Pressure Switch Type: Snubber and two sets of SPST dry contacts
• Pressure Gauge: Liquid Filled
• Pump Dry Run Capability: Yes
• Low Pressure Alarm Contacts: Auxiliary Dry Contact
• Power Indicator: LED Power Light

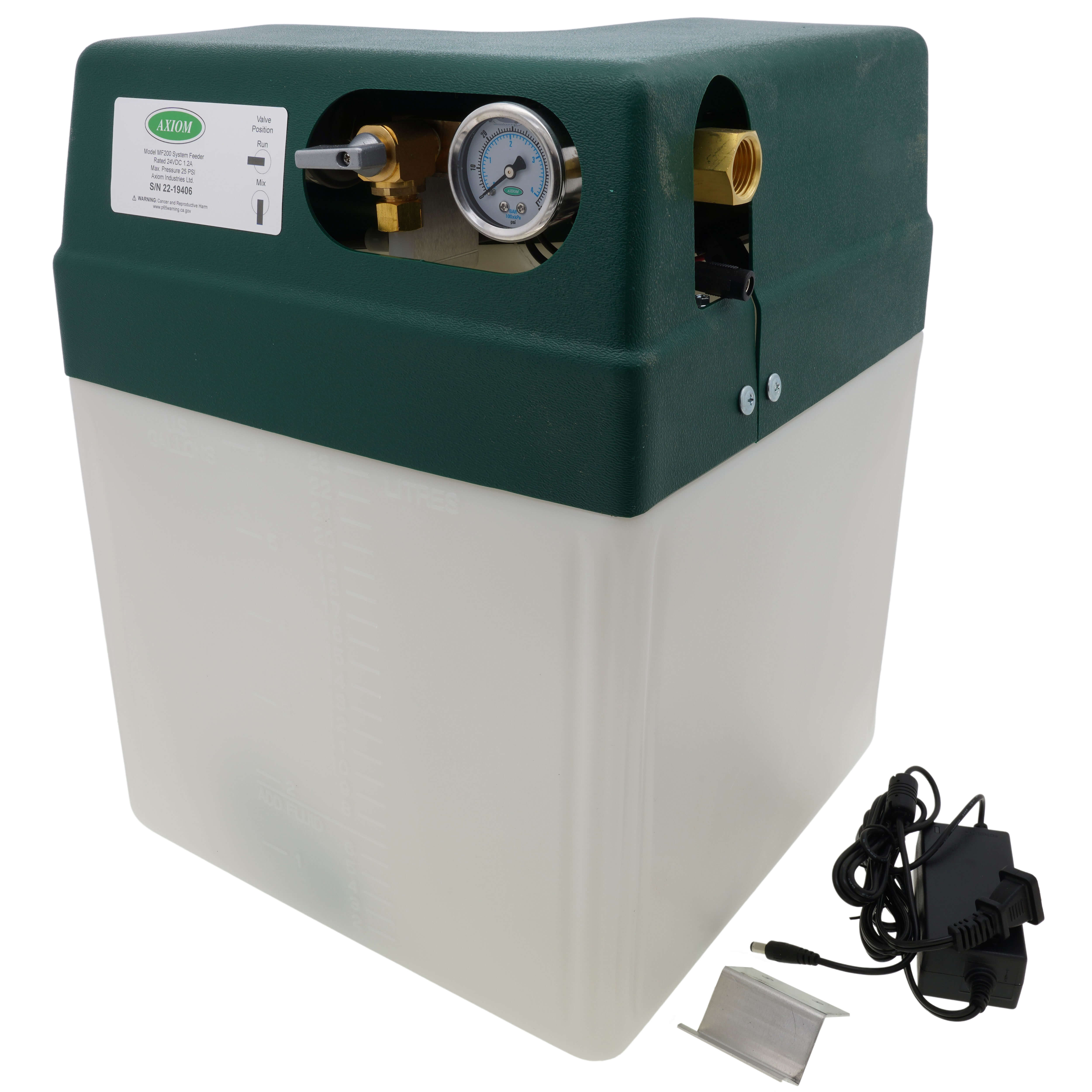

• Accessories Included: Fused power supply adapter with LED power indicator light
• Optional Accessories: MF200-1430 Tank Mounting Shelf, RIA10-1-SAA Low Pressure Alarm Panel
