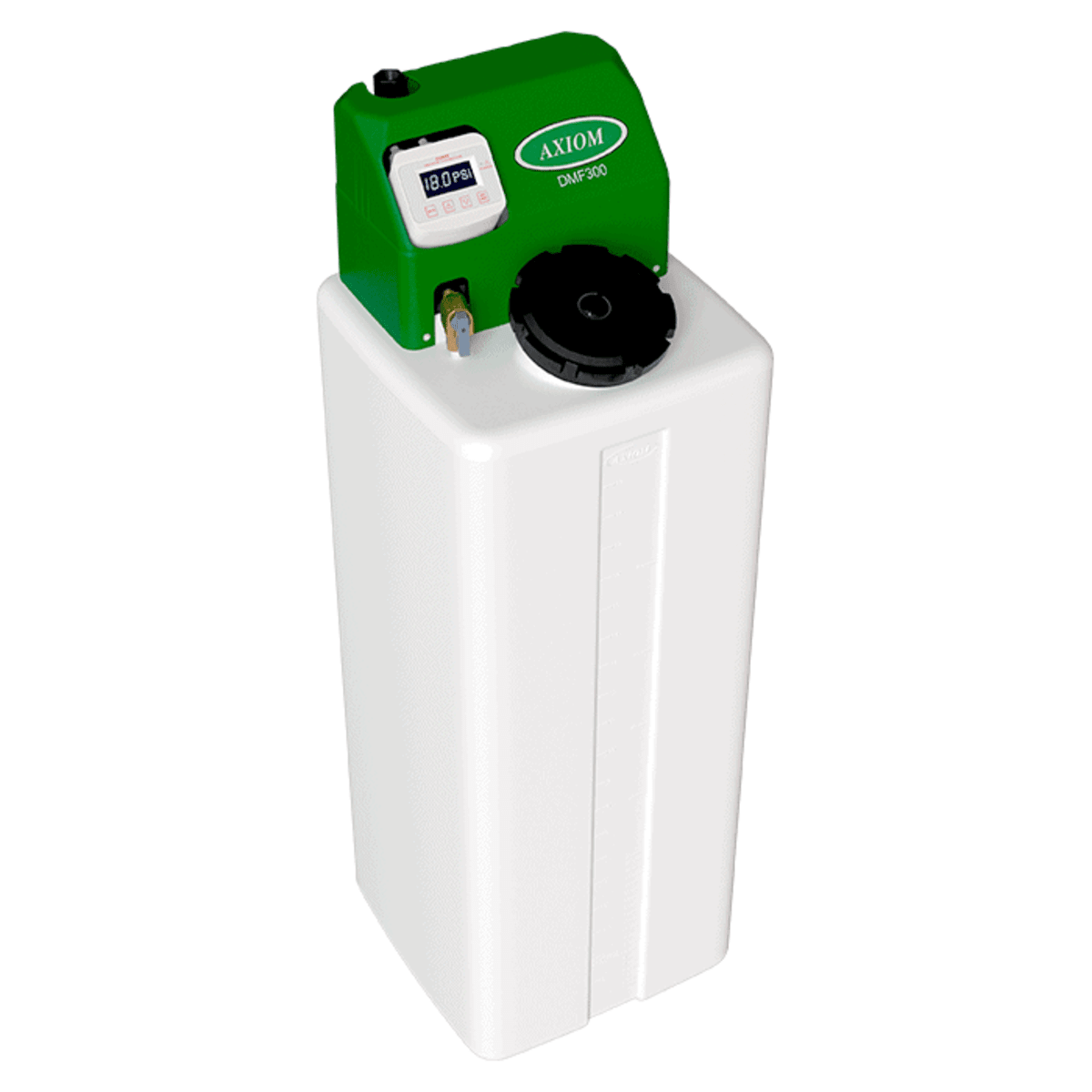

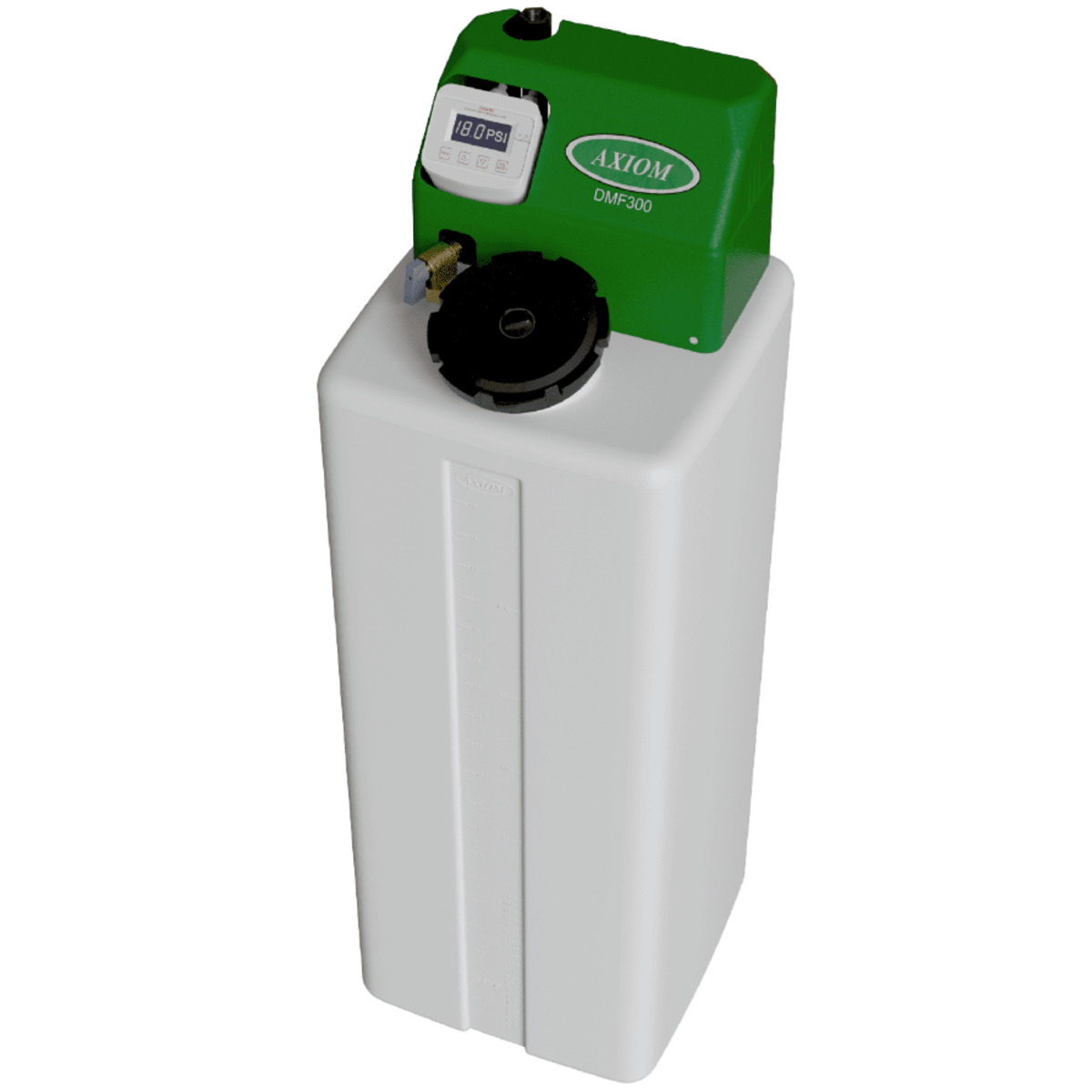

Axiom DMF300 Pressure Pal Digital Mini System Feeder 19 Gallon

Product Description

The Axiom DMF300 is a digital mini feeder designed for pressurizing closed-loop hydronic systems. This unit features a digital pressure control ranging from zero to forty-five psi, along with electronic alert contacts. A front fill point allows for simple fluid handling. The 19-gallon tank provides sufficient storage for many applications.

• Digital pressure control from zero to forty-five psi
• Front fill point for easy fluid handling
• Built-in alert contacts for low-level and low-pressure conditions

Product Highlights

This unit has a user-friendly digital display that shows operational status and pressure readings. It also prevents flooding during system ruptures by only pumping contents from the tank and provides leak detection capabilities.

Product Information

Standard Information

• Brand: Axiom
• MPN: DMF300

Technical Specifications

• Tank Capacity: 19 gallons
• Pressure Setpoint: 45 psi
• Weight: 10.75 lbs
• Power Supply: 115V AC
• Dimensions: 12 inches (Depth) x 36.2 inches (Height)
• Discharge: 1/2 inch FPT
• Pump Rating: 1.0 gpm
