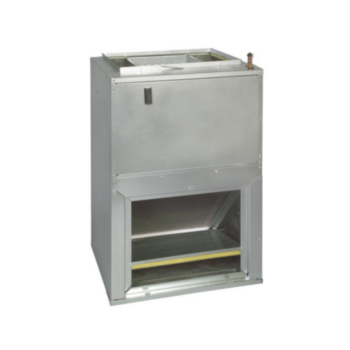

Goodman AWUT241014 - AWUT Air Handler, Two-Speed PSC (AWUT241014)

Wall-Mount Air Handler 1Ω to 3 Tons

• AWUT Models: Equipped wit a fully adjustable TXV
• Direct-drive, multi-speed motors allows air volume variation for heating/cooling
• Multi-speed ECM: AWUT 31, 32, 37
• Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
• Aluminum tubing coils on all models
• Factory-installed pull-type disconnect
• Thermoplastic drain pan with bottom primary and secondary drain connections
• AHRI Certified and ETL Listed

• All Aluminum Coil
• Improved Reliability and Quality
• Factory TXV Installed for Quicker Install
• More Efficient Refrigerant Metering

• Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
• Built-in filter rack (filter included)
• Large chassis (2-1/2 and 3 ton units), front return only
• Small chassis (1-1/2 and 2 ton units), front or bottom return
• Wall-hanging bracket provided
