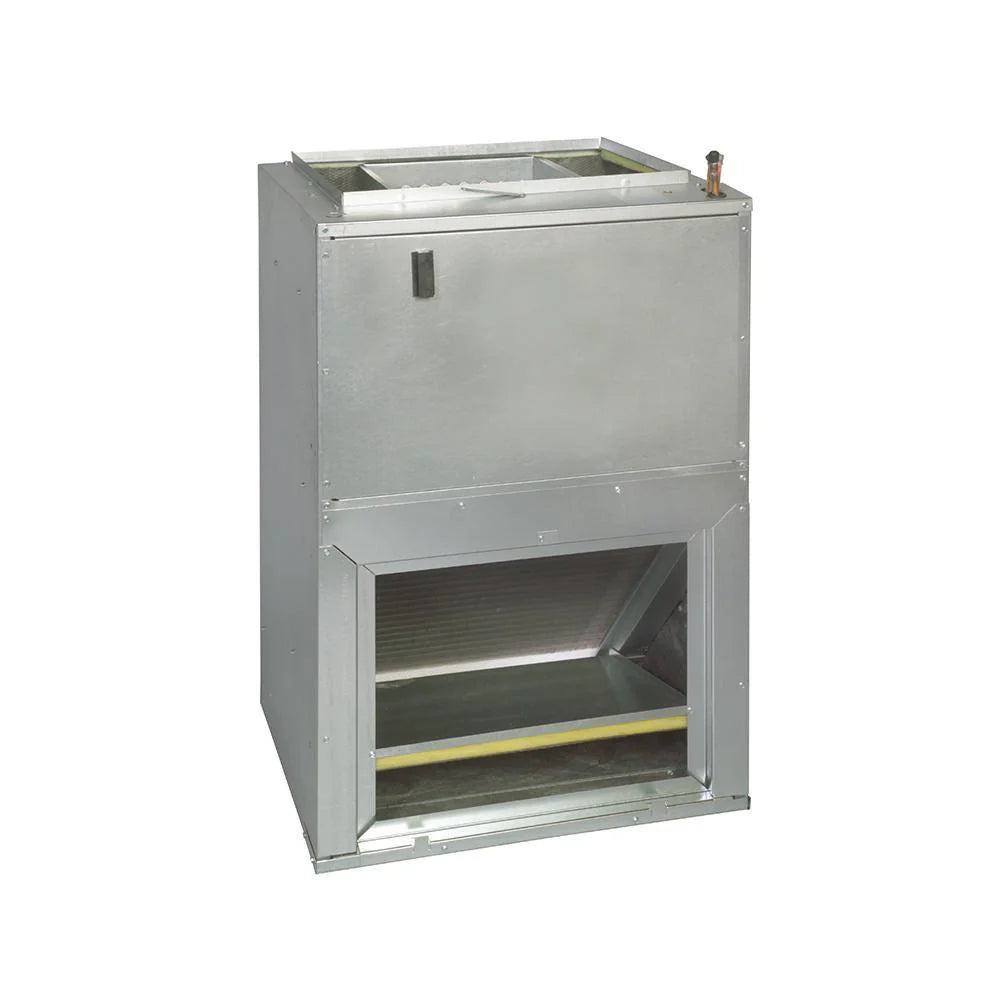

Goodman AWUT370816 AWUT Series Air Handler 3 Ton Upflow

Product Description

The Goodman AWUT370816 AWUT Series Air Handler is a 3 ton, upflow unit designed for efficient heating and cooling. Goodman is known for its reliable HVAC solutions, and this model includes several key features and specifications.

• Direct drive, multi-speed ECM blower motor
• Equipped with R-410A adjustable TXV
• Thermoplastic drain pan with primary and secondary drain connections

Product Highlights

The Goodman AWUT370816 air handler includes a direct drive, multi-speed ECM motor, ensuring efficient air volume variation for both heating and cooling. The unit is designed for dedicated upflow installation and includes aluminum tubing coils, a factory-installed disconnect, and rust-resistant nickel chromium heating elements.

Product Information

Standard Information

• Brand: Goodman
• MPN: AWUT370816
• Model: AWUT Series
• Type: 1-Piece, Unpainted
• Material: Steel, Galvanized
• Finish: Galvanized

Technical Specifications

• Flow Rate: 1315 cfm
• Fuse Size: 45 A
• Dimensions: 36 inches H x 24 inches W x 21 inches D
• Filter Size: 18 x 20 x 1 inches
• Configuration: Dedicated Upflow
• Mounting Type: Wall
• Heater Wattage: 8 kW
• Cooling Capacity: 24000 - 36000 BtuH
• Liquid Line Size: 3/8 inch
• Nominal Capacity: 2 - 3 ton
• Suction Line Size: 3/4 inch
• Electrical Ratings: 208/240 V, 60 Hz, 1 Phase
• Suitable For Use With: R-410A
