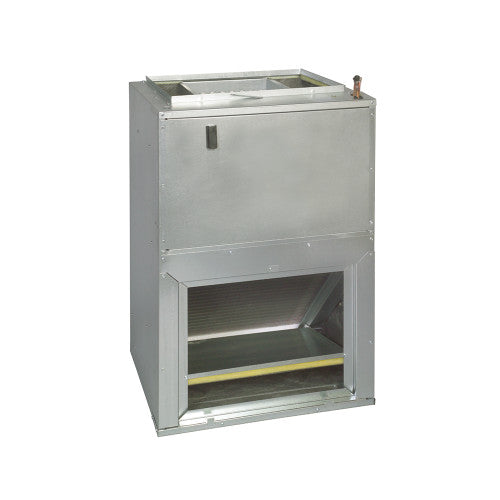

Goodman AWUF190316 - AWUF Air Handler, Multi Speed ECM (AWUF190316)

Wall-Mount Air Handler 1�© to 3 Tons

• Equipped with a Check Flowrater for cooling-only and heat pump operation
• Direct-drive, multi-speed motors allows air volume variation for heating/cooling:
• Multi-speed ECM: AWUF19, 25, 31, 32, 37
• Multi-speed PSC motor: AWUF18, 24, 30, 36
• Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
• Aluminum tubing coils on all models
• Factory-installed pull-type disconnect
• Thermoplastic drain pan with bottom primary and secondary drain connections
• AHRI Certified
• ETL Listed

• All Aluminum Coil
• Improved Reliability and Quality
• Factory TXV Installed for Quicker Install
• More Efficient Refrigerant Metering

• Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
• Built-in filter rack (filter included)
• Large chassis (2-1/2 and 3 ton units), front return only
• Small chassis (1-1/2 and 2 ton units), front or bottom return
• Wall-hanging bracket provided
